• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1945 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196589

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

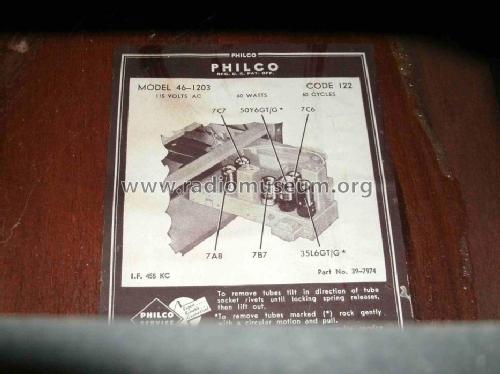

• 7A8 7B7 7C6 7C7 35L6 50Y6

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 46-1203 Code 122 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 23 x 12 x 16 inch / 584 x 305 x 406 mm

• Author
• Model page created by Mark Skala. See "Data change" for further contributors.
