46-1209 Radio-Phonograph Code 121 and 122

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476488) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476489) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476490) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476491) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476492) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476493) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476494) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476495) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476496) Radio

46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 476497) Radio
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 147094) Radio 46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 147095) Radio
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 695416) Radio 46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 147096) Radio
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 627305) Radio 46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 1047894) Radio
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 1489914) Radio 46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 1489916) Radio
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 1489917) Radio 46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 1489918) Radio
Use red slider bar for more.
46-1209 Radio-Phonograph Code 121 and 122; Philco, Philadelphia (ID = 147094) Radio

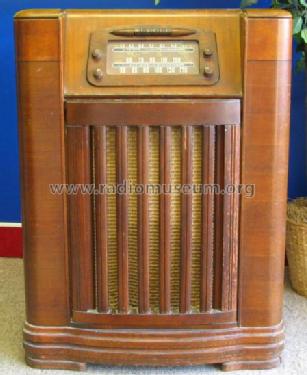

Philco, Philadelphia: 46-1209 Radio-Phonograph Code 121 and 122 [Radio] ID = 147094 450x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model 46-1209 Radio-Phonograph Code 121 and 122, Philco, Philadelphia Stg. Batt. Co.; USA:
eBay seller auctioncafe!.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1946/1947 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 7F8 7H7 7H7 7X7 7AF7 6V6GT 6V6GT 5Y3GT
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 10 W (unknown quality)
from Radiomuseum.org Model: 46-1209 Radio-Phonograph Code 121 and 122 - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 28 x 38 x 13.5 inch / 711 x 965 x 343 mm
Notes Codes 121 and 122 are equal, except for a few components (capacitors as well as resistors).
The Philco model 46-1209 is an AC Operated Combination "Auto. Phono-Radio", 2-Band Superheterodyne with Self Contained Loop Antenna. A guest, David Alexander, told us that his version with code 122 uses a tube 7C6 (plug compatible to 7X7 but lesser plate current).
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio CollectorGrinder, 1995 (Philco Home Radio Yearbook 1946-1947)

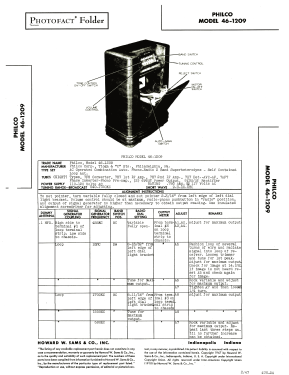

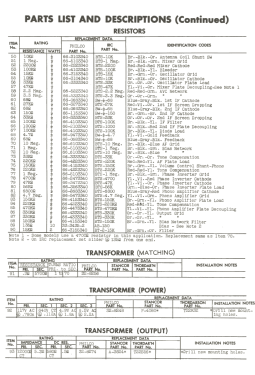

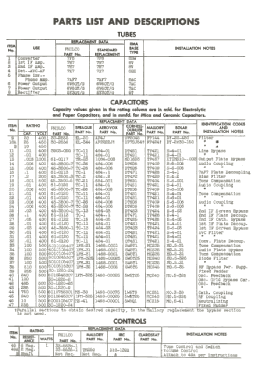

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 2-47, set 13, folder 473-24)
