46-250 Transitone Code 125

46-250 Transitone Code 125; Philco, Philadelphia (ID = 91080) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476064) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476065) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476066) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476067) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476068) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476069) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476070) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 476071) Radio

46-250 Transitone Code 125; Philco, Philadelphia (ID = 494837) Radio
46-250 Transitone Code 125; Philco, Philadelphia (ID = 877606) Radio 46-250 Transitone Code 125; Philco, Philadelphia (ID = 32183) Radio
46-250 Transitone Code 125; Philco, Philadelphia (ID = 137862) Radio 46-250 Transitone Code 125; Philco, Philadelphia (ID = 726596) Radio
46-250 Transitone Code 125; Philco, Philadelphia (ID = 137863) Radio 46-250 Transitone Code 125; Philco, Philadelphia (ID = 717010) Radio
46-250 Transitone Code 125; Philco, Philadelphia (ID = 726599) Radio 46-250 Transitone Code 125; Philco, Philadelphia (ID = 877607) Radio
46-250 Transitone Code 125; Philco, Philadelphia (ID = 965146) Radio 46-250 Transitone Code 125; Philco, Philadelphia (ID = 965147) Radio
Use red slider bar for more.
46-250 Transitone Code 125; Philco, Philadelphia (ID = 877606) Radio
Philco, Philadelphia: 46-250 Transitone Code 125 [Radio] ID = 877606 933x661
Select picture or schematic to display from thumbnails on the right and click for download.
For model 46-250 Transitone Code 125, Philco, Philadelphia Stg. Batt. Co.; USA:
Philco 46-250 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1946 Type: Broadcast Receiver - or past WW2 Tuner

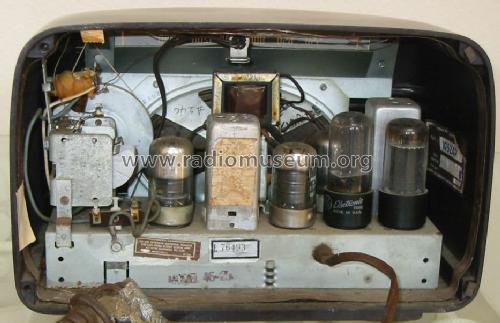

Valves / Tubes 5: 7A8 7B7 7C6 35Y4 50B5
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 (30W) Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 46-250 Transitone Code 125 - Philco, Philadelphia Stg. Batt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 11 x 7 x 5.5 inch / 279 x 178 x 140 mm
Notes

Code 121 uses other end- and rectifier tubes: 50L6GT and 50Z5G or 50Z5GT.
4" x 6" PM elliptical speaker.

External source of data E. Erb 3-907007-36-0

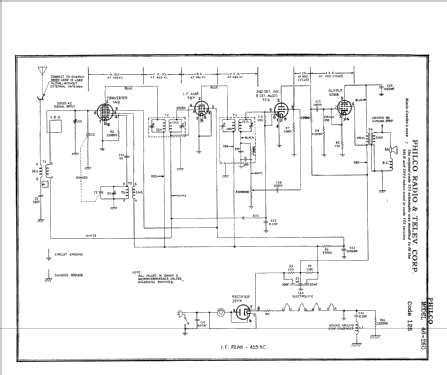

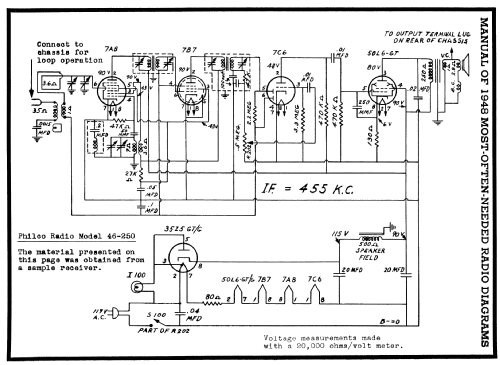

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Die «Thali Schemasammlung» führt das Modell.

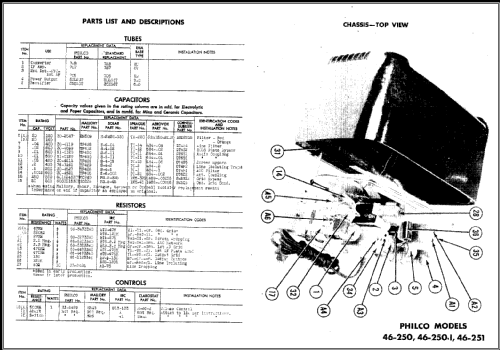

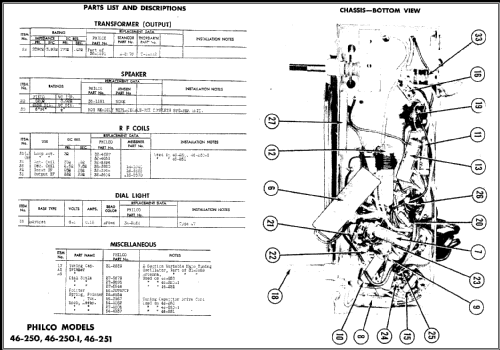

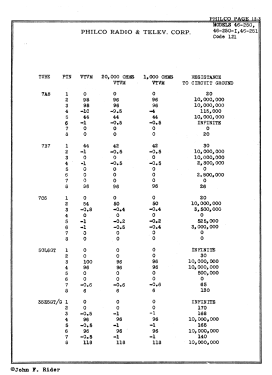

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 7-46, set 2, folder 462-12)

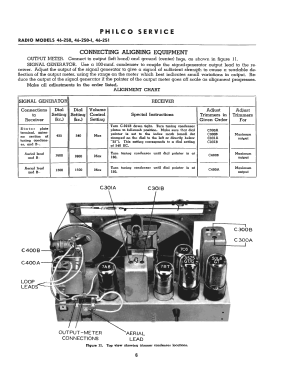

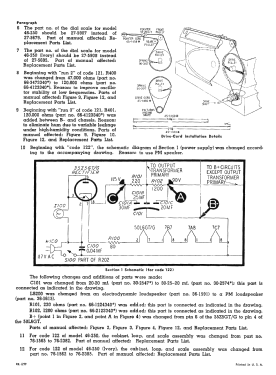

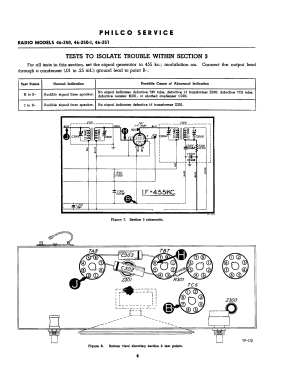

Literature/Schematics (2) Machine Age to J.Vol.2 Stein 97 (page 217.)
Literature/Schematics (3) Philco Folder for 1946.

All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Here you find 3368 models, 1842 with images and 2706 with schematics.



rmXorg
