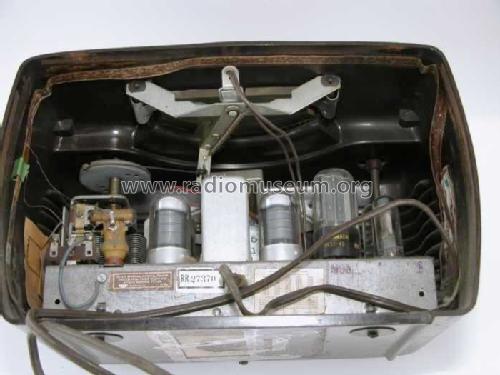

46-420 Code 121; Philco, Philadelphia (ID = 1285324) Radio
Philco, Philadelphia: 46-420 Code 121 [Radio] ID = 1285324 640x557
Select picture or schematic to display from thumbnails on the right and click for download.
For model 46-420 Code 121, Philco, Philadelphia Stg. Batt. Co.; USA:
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1946 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7C7 7A8 7B7 7C6 50L6 35Z5
Principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 46-420 Code 121 - Philco, Philadelphia Stg. Batt
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.5 x 7.5 x 7 inch / 241 x 191 x 178 mm
Notes

Color Brown; Code121.

Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in A flick of the switch 1930-1950 (Philco Home Radio Yearbook 1946-1947)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 10-46, set 6, folder 466-22)
Literature/Schematics (3) Philco Folder for 1946.

All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Here you find 3395 models, 1849 with images and 2754 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.




Forum contributions about this model
Philco, Philadelphia: 46-420 Code 121
Threads: 1 | Posts: 1
Hits: 1243     Replies: 0
philco: 46-420;
Konrad Birkner † 12.08.2014
08.Mar.04
  1 Superhet; Maße: 300 / 200 / 180 ; 6 Röhren: 7A8 / 7C7 / 7B7 / 7C6 / 50B5 / 35Y4 ;ZF=455kHz; Allstrom 115V;
