52-540-M Code 122 Transitone

52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 525063) Radio

52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 525064) Radio

52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 525065) Radio

52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 525066) Radio
52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 883256) Radio 52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 138068) Radio
52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 883257) Radio 52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 138069) Radio
52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 138070) Radio 52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 138067) Radio
52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 1470813) Radio 52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 1470814) Radio
Use red slider bar for more.
52-540-M Code 122 Transitone; Philco, Philadelphia (ID = 883256) Radio
Philco, Philadelphia: 52-540-M Code 122 Transitone [Radio] ID = 883256 933x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model 52-540-M Code 122 Transitone, Philco, Philadelphia Stg. Batt. Co.; USA:

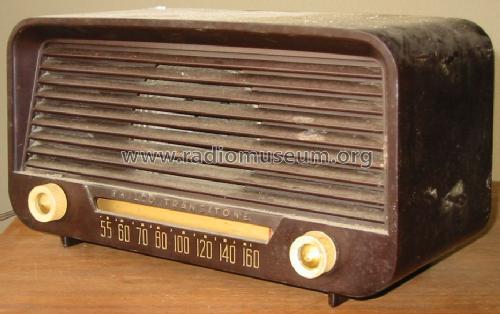

Philco 54-540 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1951/1952 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 7A8 12BA6 12AV6 35L6GT 35Z5GT
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 52-540-M Code 122 Transitone - Philco, Philadelphia Stg. Batt
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11 x 5.5 x 5 inch / 279 x 140 x 127 mm
Notes

Color= Mahogany. There are different output tubes listed: Beitman featured the 50L6GT, Rider's a 35L6GT, while Sam's shows a 50L6GT in the schematic, but mentions also a 35L6. To be on the safe side we list the models separately, since printed labels stating different tubes had been applied to the radios.

Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube

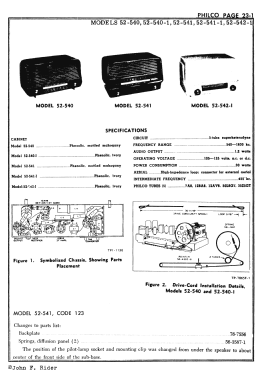

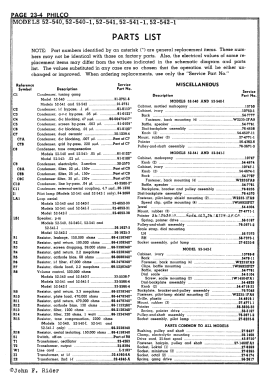

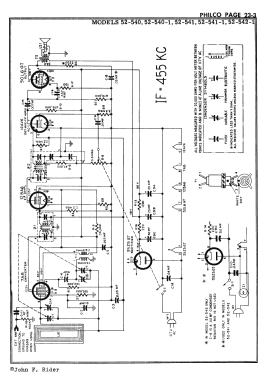

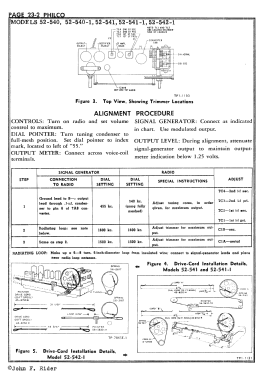

Circuit diagram reference Rider's Perpetual, Volume 23 (last), covering up to 1954
Mentioned in The Radio CollectorGrinder, 1995

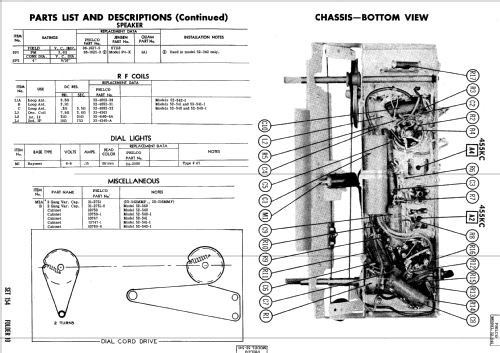

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-51, Set 154, Folder 10)
Literature/Schematics (3) Philco Folder 180-3436 for 1952.
