Model: 818
Antique radios, Old Time Radios
818
Country:
United States of America (USA)
Manufacturer/Brand:
Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1936 ?
Type:
Car RadioAutoradio - ist nicht immer als solches bezeichnet, da erst später mit Code unterschieden.
Mod.-ID = 51180
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 0 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 260 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
Storage Battery for all
www.radiomuseum.org
Model: 818
Valves / Tubes
6:
78
(more
for members)
Notes
This model is equipped with a vibrator for the generation of B+.
External source of data
Ernst Erb

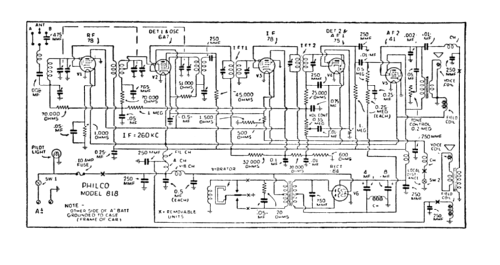

Circuit diagram reference

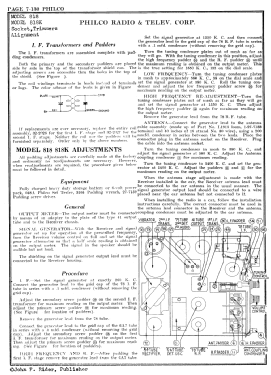

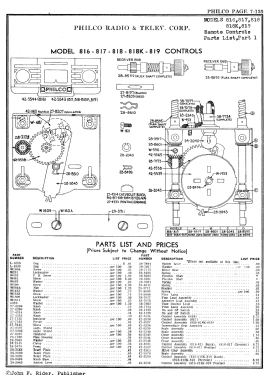

Rider's Perpetual, Volume 7Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
No further information
on
818 (Philco, Philadelphia Stg. Batt. Co.; USA)
