• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philco Radio & Television Corp. of Great Britain Ltd.; London

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85030

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1AC6 1L4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 90 + 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: A3632 - Philco Radio & Television Corp

• Dimensions (WHD)
• 230 x 150 x 85 mm / 9.1 x 5.9 x 3.3 inch

• Notes

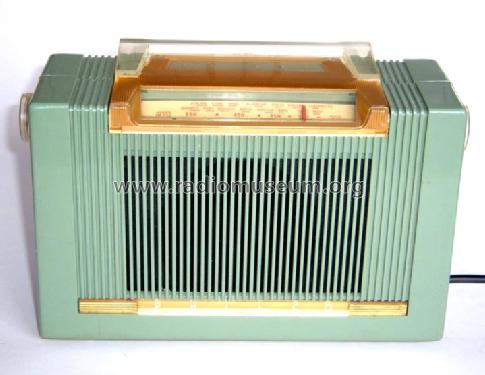

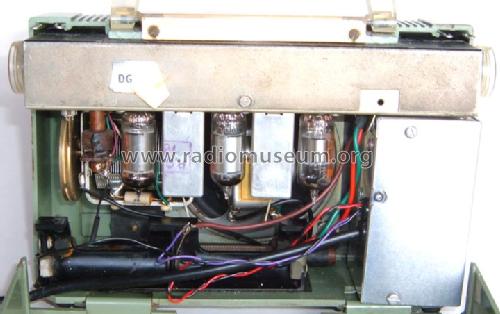

• Small battery valve portable which looks more like a transistor portable. An internal battery eliminator in an aluminium box has been added to the model shown in the picture.

• Source of data
• - - Data from my own collection
