- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philco Radio & Television Corp. of Great Britain Ltd.; London
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 201837
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 475 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: D732 CG - Philco Radio & Television Corp
- Shape
- Miscellaneous shapes - described under notes.
- Notes
- Remote control receiver in two parts, a console cabinet housing the main chassis and loudspeaker and a second remote control unit containing the entire frequency changer stage connected via a multiway cable. See also the similar D732BG table version.
- Literature/Schematics (1)

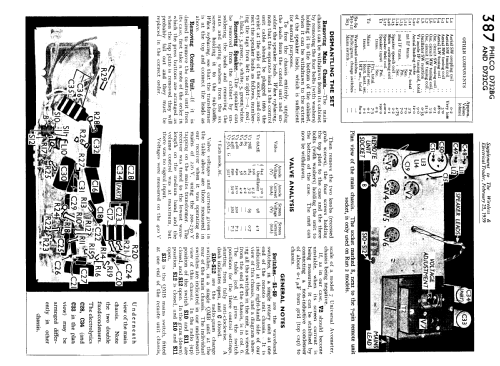

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (387)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
