Model: S-5123
Antique radios, Old Time Radios
S-5123
Country:
United States of America (USA)
Manufacturer/Brand:
Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1951 ?
Type:
Car RadioAutoradio - ist nicht immer als solches bezeichnet, da erst später mit Code unterschieden.
Mod.-ID = 101525
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 0 (for
members)
Principle
Superhet with RF-stage; IF-Freq. 455 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Wave bands
Broadcast only (MW).Mittelwellenempfänger
Power type and voltage
Storage Battery for all / 6,6 Volt
Loudspeaker/pwr.out
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
/ Ø 15.2 cm = 6 inch
www.radiomuseum.org
Model: S-5123
Valves / Tubes
6:
6BA6
(more
for members)
Notes
This model is equipped with a vibrator VB1 for generation of B+.
Literature/Schematics
Philco Service Auto Radio 1946-1953
This model was suggested by Gidi Verheijen.

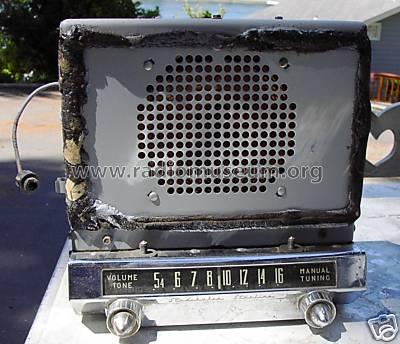

Copy from Ebay seller newmal98412
No further information
on
S-5123 (Philco, Philadelphia Stg. Batt. Co.; USA)
