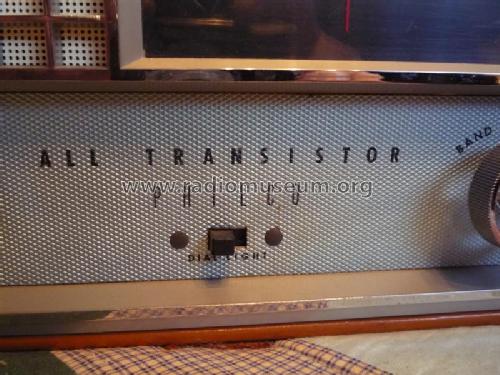

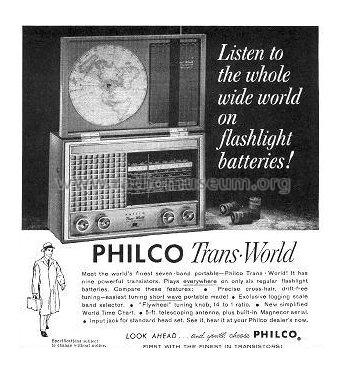

Trans-World Portable T-9 Code 126

Philco, Philadelphia Stg. Batt. Co.; USA

  • Year
  • 1958–1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104516

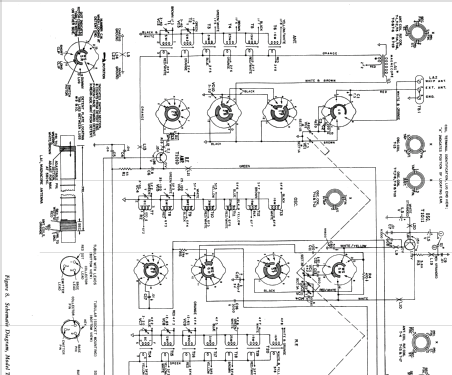

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / D: 4 x 1.5 & 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Trans-World Portable T-9 Code 126 - Philco, Philadelphia Stg. Batt
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 390 x 270 x 178 mm / 15.4 x 10.6 x 7 inch
  • Notes
  • The Philco Model T-9 Code 126 is a Battery operated 9 transistor portable AM Receiver. Frequency Coverage is 540KHz to 18.2MHz seperated into seven bands:
    Broadcast: 540-1620KHz
    Shortwave 1: 2.0-4.0MHz
    Shortwave 2: 4.0-8.0MHz
    31 Meter: 9.4-9.9MHz
    25 Meter: 11.4-12.0MHz
    19 Meter: 14.8-15.6MHz
    16 Meter: 17.2-18.2MHz

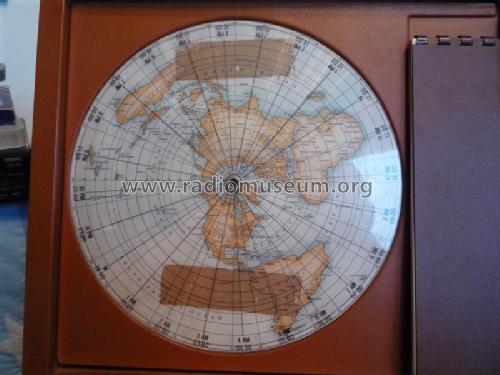

    This model has Qty(1) 5.5" PM speaker. Earphone jack disconnects the speaker for private listening. Uses Qty(4) 1.5V D cells for the main 6V supply and Qty(2) 1.5V D cells for a separate stabilized oscillator supply to assure minimum frequency variation. Cabinet is Leather-like material over wood. Philco's first transistorized shortwave portable radio. Dial is unique in that the logging scale slides below each band as it is selected.

    Civil Defense marks on dial.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 230.00 $
  • Mentioned in
  • Consumer Reports, July 1960
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Bill Morris. See "Data change" for further contributors.
