• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1972–1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 112315

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC158 BC148 AC187 AC188 BC148 AC187 BAX18 BAX18 BAX18

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

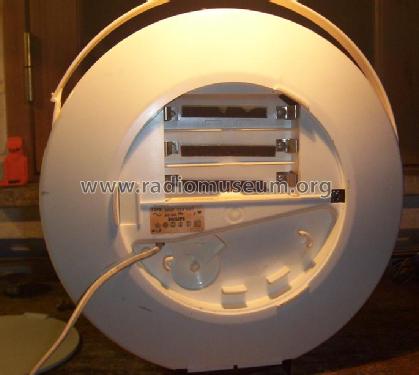

• Model: Pompon 22 GF 303/13 L - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 120 x 300 mm / 11.8 x 4.7 x 11.8 inch

• Notes
• Design-Plattenspieler in runder Form. Geschwindigkeiten: 33, 45 und 78 UpM, Treibradantrieb; Keramiksystem GP204.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• Handbuch VDRG 1972/1973

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
