Party 22GF210 /01L

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1968–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 86329

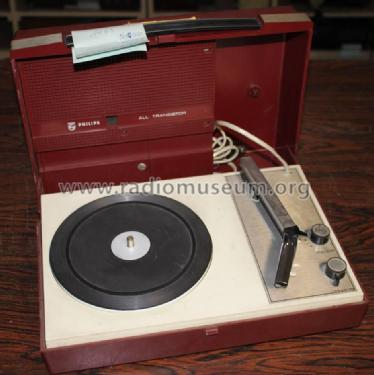

• Picture

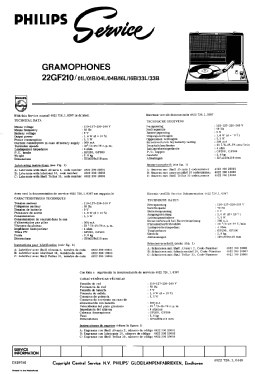

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• BC148 AC126 AC187 AC188 BC158 or. BF194 AC188 or. AC187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 110, 127, 220, 240 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Party 22GF210 /01L - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 325 x 120 x 230 mm / 12.8 x 4.7 x 9.1 inch

• Notes

• 3 Geschwindigkeiten: 33,3 / 45 / 78

  Farbe: rot, Laufwerk-Platine weiss

  Siehe auch: Donauland 8490 /30

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
