• Year
  • 1965 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97493

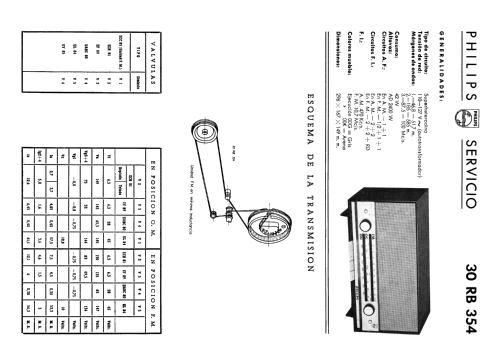

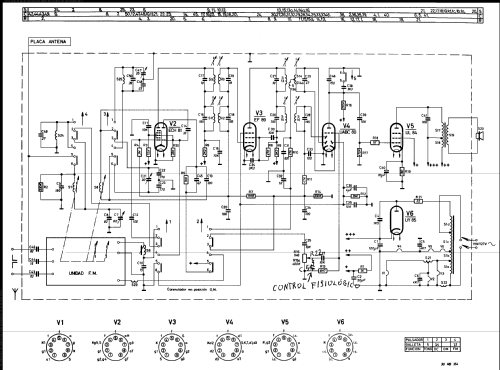

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-127 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 30RB354 /00K - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 296 x 167 x 149 mm / 11.7 x 6.6 x 5.9 inch
  • Notes
  • Módulo FM 87,5-100 MHz tipo 3130 108 50040 (mismo esquema que EB9151 diferente caja)

    Versión /00K = Arena (sand)

    Alimentación con autotransformador.
    Mains through autotransformer
