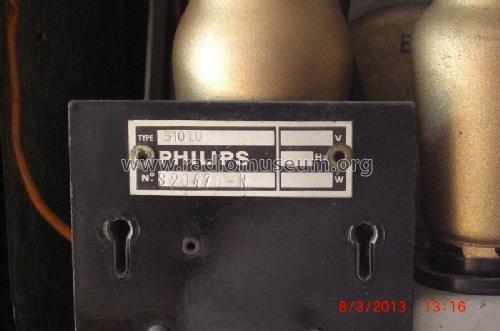

Octode-Super 510LU

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99701

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CK1 CF2 CB2 CF1 CL2 CY1

• Main principle
• Superheterodyne (common); ZF/IF 115 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-130 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Octode-Super 510LU - Philips France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 290 x 230 mm / 14.6 x 11.4 x 9.1 inch

• Notes

• 2 gammes d'ondes : OM (PO) de 199 à 552 m, OL (GO) de 760 à 1900 m. Anti-fading efficace. Cadran interchangeable. Prise HP supplémentaire.

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Schémathèque Toute la Radio (STR) (No. 202)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
