• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7234

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF8 EK2 EF9 EAB1 EM1 EF6 EL3 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 473 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

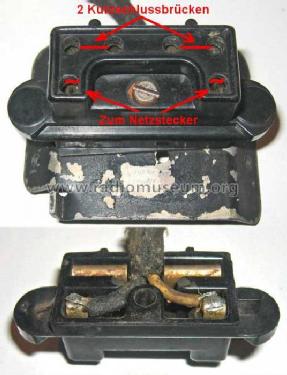

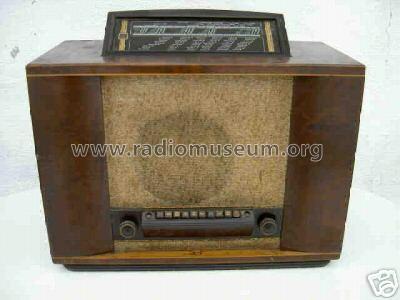

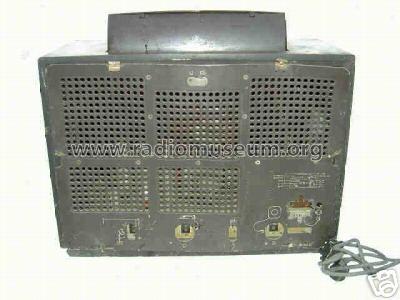

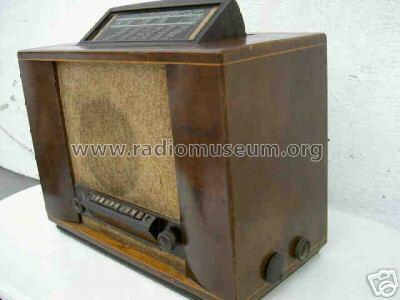

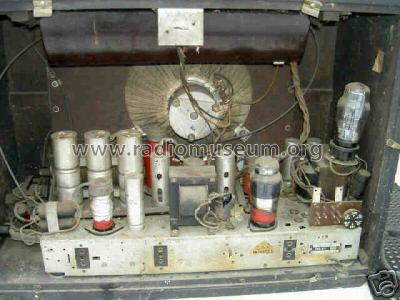

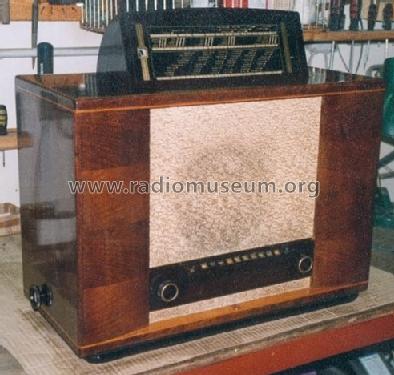

• Model: 753A - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Notes

• Motorabstimmung, 8 programmierbare Drucktasten.

  ---

  Motortuning: 8 programmable push buttons, 2 buttons for up/down tuning.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Literature/Schematics (1)
• -- Original-techn. papers.
