7B470

7B470 ; Philips Canada (ID = 1400103) Radio
Use red slider bar for more.
7B470 ; Philips Canada (ID = 1400103) Radio

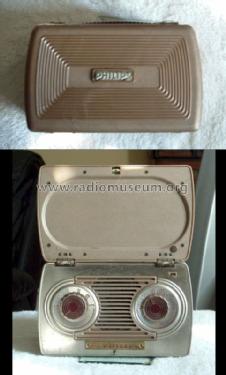

Philips Canada: 7B470 [Radio] ID = 1400103 483x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7B470, Philips Canada:
this is my philips portible radio model 7B470

Country:  Canada
Manufacturer / Brand:  Philips Canada
Year: 1950 ? Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1U4 1S5 3S4
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 120; 67.5 & 2x1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: 7B470 - Philips Canada
Material Metal case
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 8 x 6 x 4 inch / 203 x 152 x 102 mm
Net weight (2.2 lb = 1 kg) 6.3 lb (6 lb 4.8 oz) / 2.860 kg
Price in first year of sale 39.95 CDN

Model page created by John Allen. See "Data change" for further contributors.
