• Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13220

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; Anode bend detection
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 103; 111; 118; 127; 135; 143; 155; 186; 210; 225; 240; 253 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

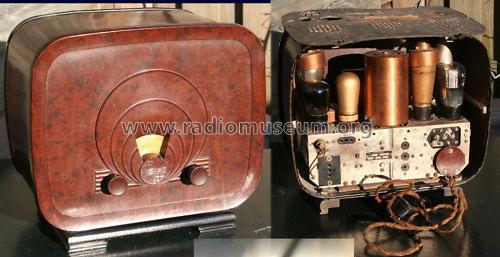

  • Model: 824A - Philips - Schweiz
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • Ch=834A(874A)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

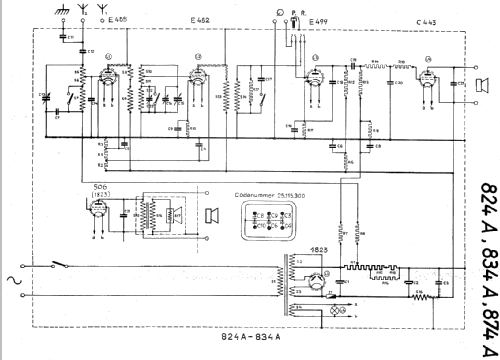

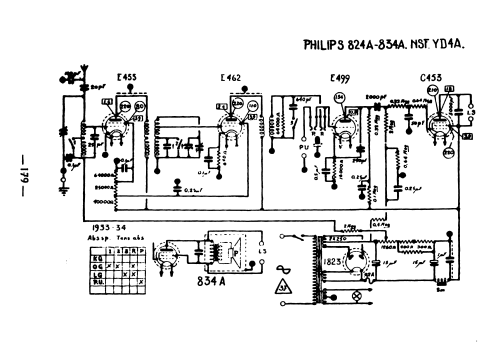

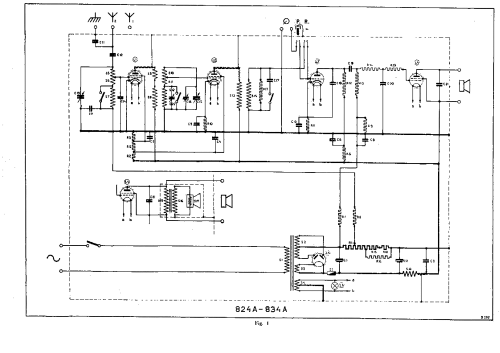

  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.

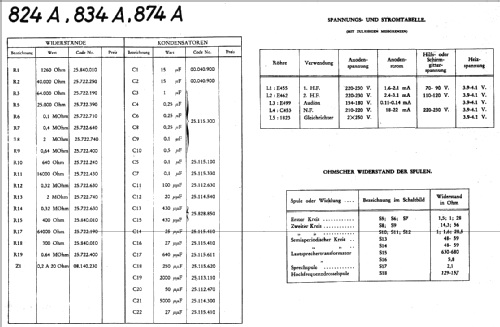

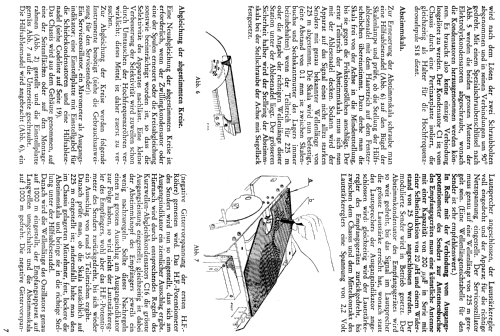

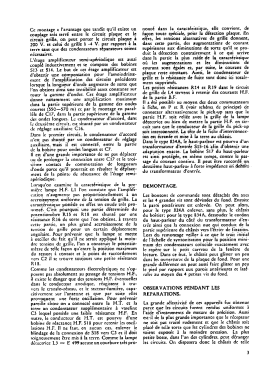

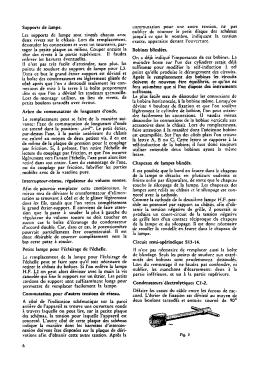

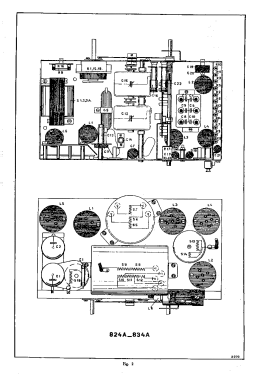

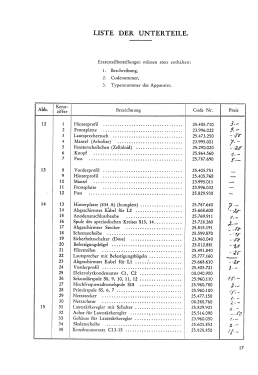

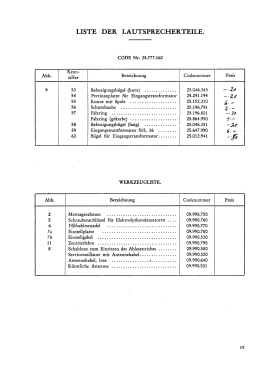

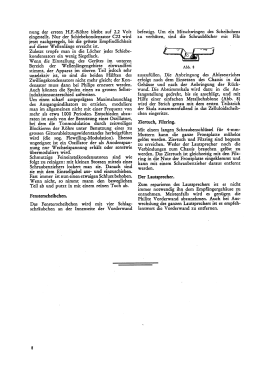

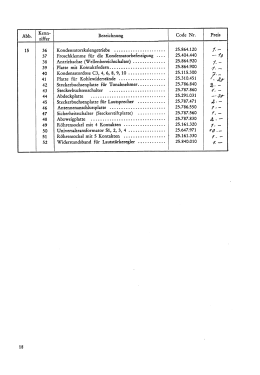

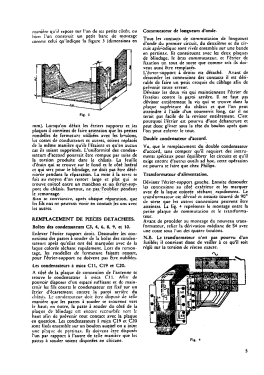

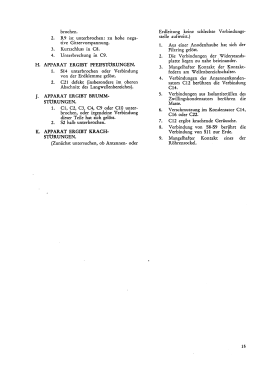

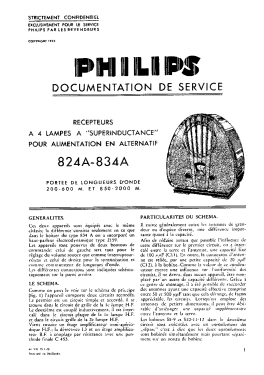

  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Philips - Schweiz: 824A

Threads: 1 | Posts: 1

Die ursprüngliche Röhrenbestückung lautet auf E455, E462, E499, C453 und 1823. Siehe auch 824A - gleiches Chassis, ohne LS.

Ernst Erb, 08.Jan.03

Weitere Posts (1) zu diesem Thema.
