AG 9115/95B

AG 9115/95B; Philips Radios - (ID = 752408) R-Player AG 9115/95B; Philips Radios - (ID = 752407) R-Player
AG 9115/95B; Philips Radios - (ID = 752409) R-Player AG 9115/95B; Philips Radios - (ID = 752410) R-Player
AG 9115/95B; Philips Radios - (ID = 752411) R-Player
Use red slider bar for more.
AG 9115/95B; Philips Radios - (ID = 752408) R-Player
Philips Radios -: AG 9115/95B [R-Player] ID = 752408 593x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model AG 9115/95B, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1958 ? Type: Recorder and/or Player

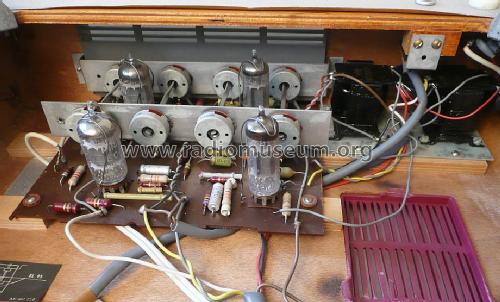

Valves / Tubes 4: ECC83 ECC83 EL95 EL95
Principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: AG 9115/95B - Philips Radios - Deutschland
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 205 x 375 mm / 15 x 8.1 x 14.8 inch

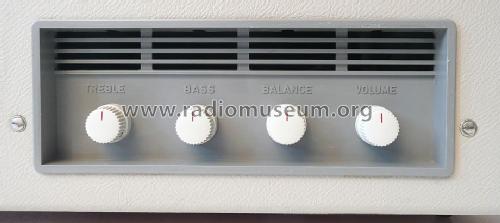

Notes Stereo Koffer-Plattenspieler mit 2 abnehmbaren Lautsprechern. An der Front befinden sich Regler für Bass, Treble, Balance und Volume. Laufgeschwindigkeiten 16,33,45,78 Upm. Das Gerät hat abgefederte Füße.
Net weight (2.2 lb = 1 kg) 9.9 kg / 21 lb 12.9 oz (21.806 lb)
Source of data - - Data from my own collection

Model page created by Guido Höh. See "Data change" for further contributors.
