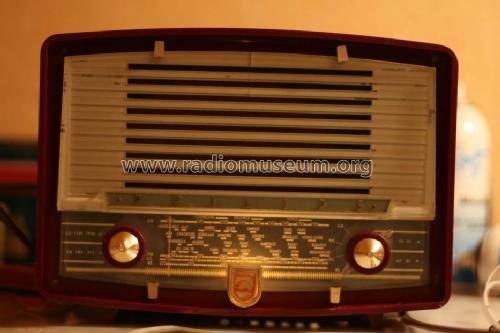

B1F71U /02 /03 /04

Philips France; Paris

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79496

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.

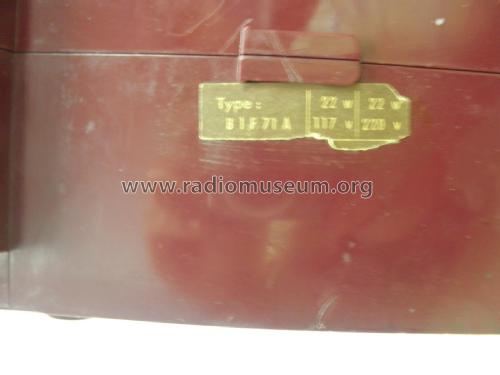

  • Power type and voltage
  • AC/DC-set / 110-127 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: B1F71U /02 /03 /04 - Philips France; Paris
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 240 x 170 x 130 mm / 9.4 x 6.7 x 5.1 inch
  • Notes
  • 4 gammes d'ondes: GO 1100 - 1950 m, PO 185 - 572 m, OC 16 - 51 m, BE 47 - 51 m. Cadre "Microcapteur" blindé et antenne OC incorporée. HP elliptique de 10 x 14 cm. Lampe cadran 7121D/00 (6 V / 0,05 A).

    Coffret polystyrène 3 coulours au choix: /02 ivoire, /03 vert, /04 bordeaux.

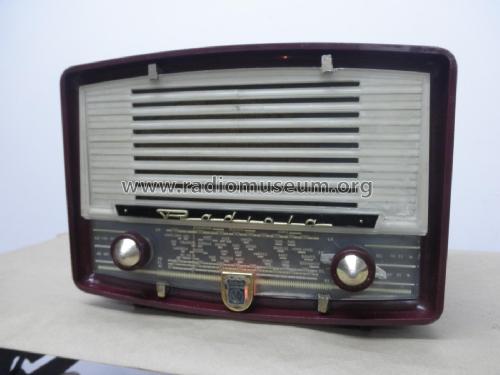

    Équivalent au Radiola Radiolinette RA177U.

    Il existe une erreur dans le plan no. 985 de le Schémathèque: il montre UF42 au lieu de UF41.

    Attention, dangeur: chassis relié au secteur.

  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips France;: B1F71U /02 /03 /04

Threads: 1 | Posts: 1

Im Schema wird für den ZF-Verstärker eine UF42 (steile nicht regelbare Pentode) angegeben, was falsch ist. Existierende Modelle sind mit der UF41 bestückt.

Siehe hierzu auch den Forumsbeitrag zum technisch gleichen Modell Radiola RA177A.

Bernhard Nagel, 26.Feb.12

Weitere Posts (1) zu diesem Thema.
