- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29625

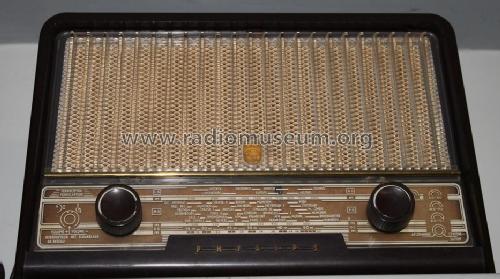

Radio from my own collection
Radio from my own collection
Radio from my own collection
Radio from my own collection
Radio from my own collection
Radio from my own collection
N°17 NL_Philips_B2X60U_SCOV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: B2X60U - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 321 x 201 x 164 mm / 12.6 x 7.9 x 6.5 inch
- Notes
-
AM radio with built-in ferroceptor:
- LW: 150 - 260 kHz.
- BC: 510 - 1620 kHz.
- SW: 5,94 - 18 MHz.
Loudspeaker AD3500X.
Dial lamp: 8097D-00 (19V / 100mA).
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Price in first year of sale
- 158.00 Dfl
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
