You-You BF111U

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106894

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

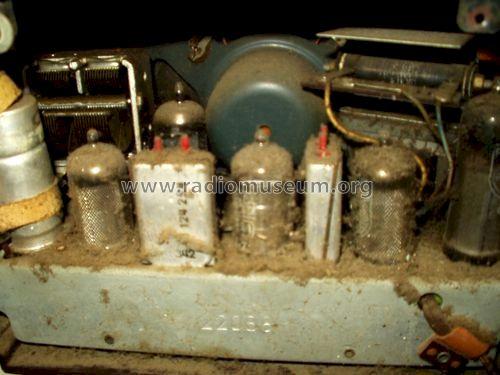

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: You-You BF111U - Philips France; Paris

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 225 x 135 x 122 mm / 8.9 x 5.3 x 4.8 inch

• Notes

• 3 gammes d'ondes 16 à 51 m, 185 à 575 m, 1150 à 1850 m. HP élliptique de 10 x 14 cm. Consommation 20 watts.

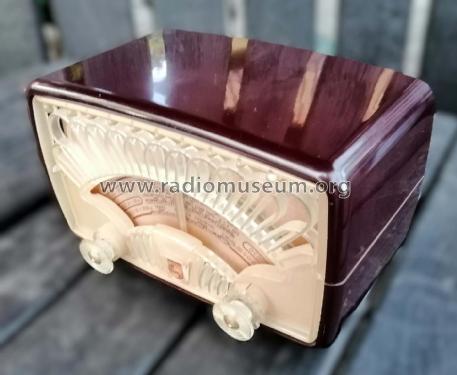

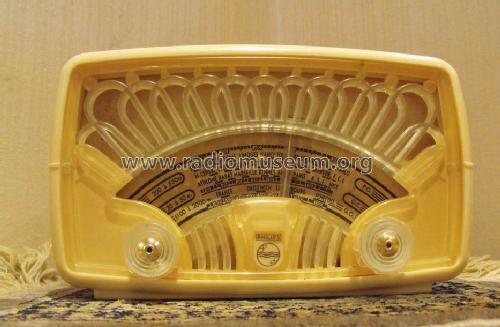

  Coffret matière plastique, 4 couleurs au choix: bordeaux, ivoire, rouge, vert. Mallette sur demande.

  Équivalent au Radiola RA15U.

• Price in first year of sale
• 16,650.00 FRF

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 2060)

• Literature/Schematics (2)
• Schémathèque Toute la Radio (STR) (No. 802)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
