• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164742

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110; 130; 220; 240 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

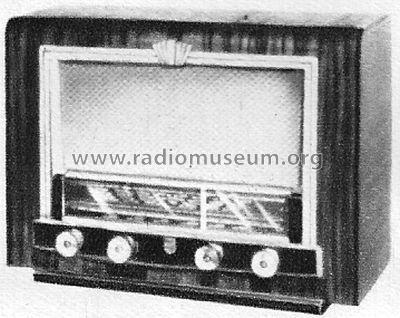

• Model: BF412AZ - Philips France; Paris

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 350 x 210 mm / 19.3 x 13.8 x 8.3 inch

• Notes

• Modèle spécial de Corvette BF412A pour courant alternatif 50 Hz et batterie 6 volts avec vibreur AU1004. Unité d'alimentation fournie séparément.

  Équivalent au Radiola RA47AZ.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 42,750.00 FRF

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 2107)

• Literature/Schematics (3)
• Schémathèque Toute la Radio (STR) (No. 795)

• Author
• Model page created by Karsten Hauger. See "Data change" for further contributors.
