BI480/A 5 Röhren

Philips Italy; Milano (MI)

  • Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 99872

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 160; 170; 220 Volt

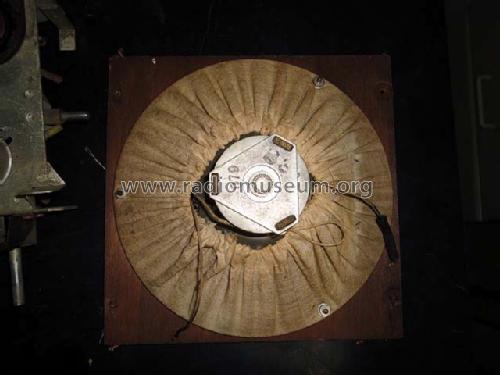

  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Power out
  • 2.8 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: BI480/A [5 Röhren] - Philips Italy; Milano MI
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 240 x 180 mm / 15.7 x 9.4 x 7.1 inch
  • Net weight (2.2 lb = 1 kg)
  • 6.5 kg / 14 lb 5.1 oz (14.317 lb)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
