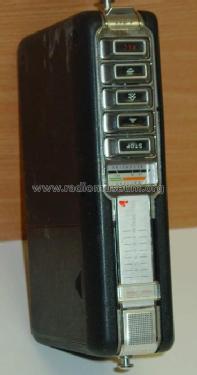

Cassetten-Recorder 2212 M N2212M

Philips - Österreich

  • Year
  • 1975
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 83395

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Dry Batteries / 5 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassetten-Recorder 2212 M N2212M - Philips - Österreich
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 220 x 150 x 60 inch / 5588 x 3810 x 1524 mm
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
