Radio Recorder D8418 /00 ab WR03

Philips - Österreich

  • Year
  • 1981
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 170928

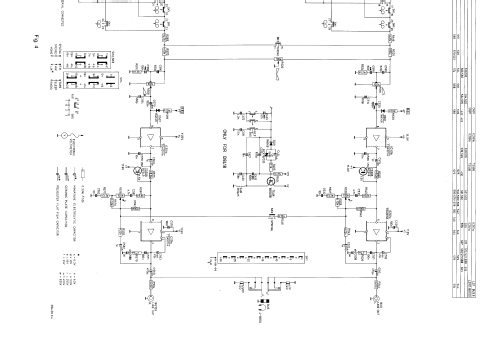

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 34
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110-127; 220-240 / D: 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Recorder D8418 /00 [ab WR03] - Philips - Österreich
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Stereo output: 2 x 2 W.

    Siehe auch Vorgänger Radio Recorder D8418 /00 mit anderer Schaltung.

    Halbleiter nur einmal je Type gelistet.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
