EL3518

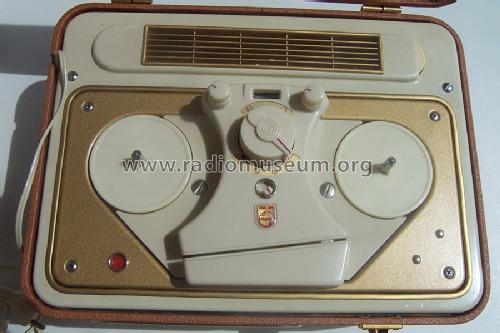

EL3518; Philips France; (ID = 506012) R-Player EL3518; Philips France; (ID = 791145) R-Player
EL3518; Philips France; (ID = 791146) R-Player EL3518; Philips France; (ID = 791147) R-Player
Use red slider bar for more.
EL3518; Philips France; (ID = 506012) R-Player
Philips France;: EL3518 [R-Player] ID = 506012 319x222
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL3518, Philips France; Paris:
Radio-pratique 1959

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 EF86 EL84 EZ80 DM71
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 127; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: EL3518 - Philips France; Paris
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 375 x 280 x 205 mm / 14.8 x 11 x 8.1 inch
Notes Enregistrement double piste. Vitesse 9,5cm/s. Mixage parole-musique. Reglage de tonalité continu. Micro piézo à grande sensibilité. Prise pour H.P exterieur. Possibilité d'enregistrer les conversations téléphoniques. Utilisation possible en électrophone avec tourne-disque. 1 moteur, diamètre des bobines 13cm
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 74,000.00 FRF
Literature/Schematics (1) Radio-pratique 1959

Model page created by Eddy Rischmann. See "Data change" for further contributors.
