Jeanette Automatic P3D54T
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6983
-
- Brand: Deutsche Philips-Ges.
Kriebel H.
Kriebel H.
Kriebel H.

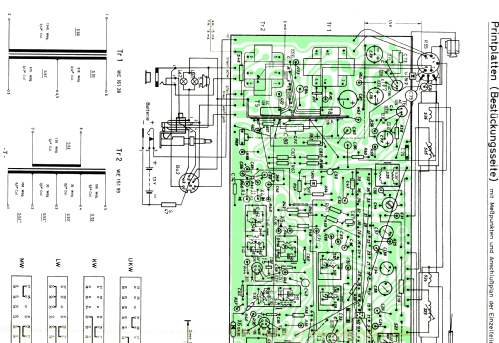

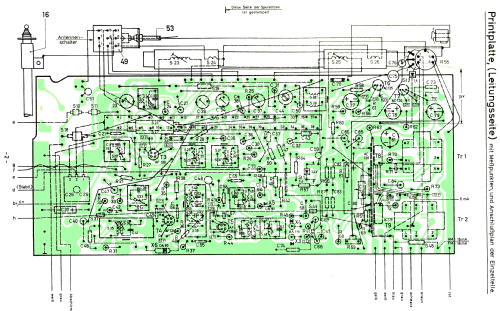

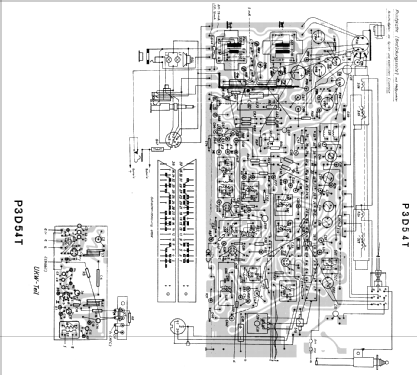

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 5 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Jeanette Automatic P3D54T - Philips Radios - Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 143 x 70 mm / 9.4 x 5.6 x 2.8 inch
- Notes
-
Betrieb im Auto über Autohalterung aus 6-V- und 12-V-Autobatterie; Netzbetrieb mit zusätzlichem Netzteil möglich.
Batterien des Typs " Baby".
- Net weight (2.2 lb = 1 kg)
- 1.750 kg / 3 lb 13.7 oz (3.855 lb)
- Source of data
- Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
