- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 226822
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

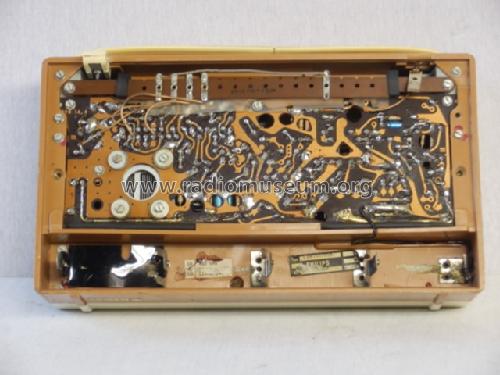

- Model: L3W25T /09K - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 160 x 80 mm / 11 x 6.3 x 3.1 inch
- Notes
-
Coverage:
SW1 16.7...37 m (18...8.1 MHz)
SW2 36.5...94 m (8.2...3.2 MHz)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Pasquale Baiocato. See "Data change" for further contributors.
