• Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30213

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; Export model
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

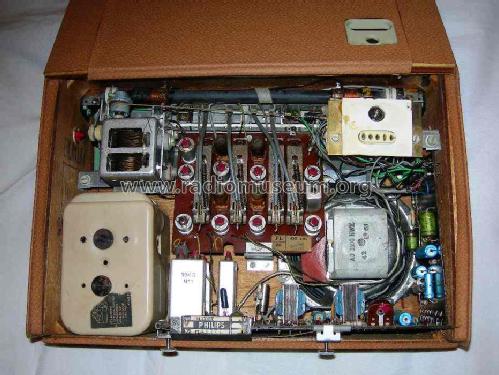

  • Model: L4X05T - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 311 x 212 x 101 mm / 12.2 x 8.3 x 4 inch
  • Notes
  • Tuning ranges:

    MW 520 - 1600 kHz
    SW3 1.65 - 4 MHz
    SW2 4.60 - 10 MHz
    SW1 11 - 23 MHz

    Dial light, tone control button.

    L4X05T is an export model without LW range, see the similar model L4X00T which has LW. L4X05T was also sold in Australia.

  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
