Matador V6U

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 112171

• Picture

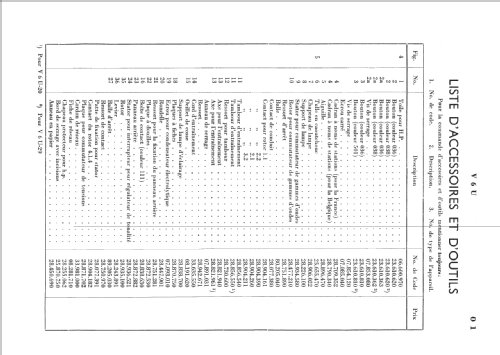

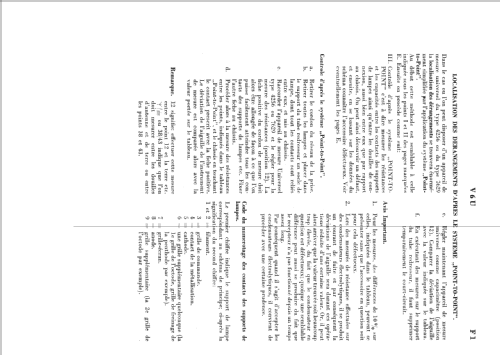

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF3 CBC1 CL4 CY1 C8 or C9

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-125; 200-225 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Matador V6U - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 330 x 150 mm / 16.5 x 13 x 5.9 inch

• Notes
• 3 Band reception:
  • LW: 725 - 1975 m.
  • BC: 198 - 585 m.
  • SW: 16,7 - 51 m.
  Tuning scale light bulbs type: 8080 (10V, 200mA).
  Loudspeaker Philips type 9617. Connectors for second loudspeaker and for pick-up.
  The ballast tube also as mains voltage selector: C8 (200-225 V) or C9 (110-125 V)

  This model is comparable with Philips Pionier V6U, Philips V6LU and NSF Aristona V6U.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
