Philector 4180

Philector 4180; Philips Radios - (ID = 27175) mod-past25

Philector 4180; Philips Radios - (ID = 1767038) mod-past25

Philector 4180; Philips Radios - (ID = 1767039) mod-past25
Philector 4180; Philips Radios - (ID = 27237) mod-past25 Philector 4180; Philips Radios - (ID = 27238) mod-past25
Philector 4180; Philips Radios - (ID = 27402) mod-past25 Philector 4180; Philips Radios - (ID = 133938) mod-past25
Philector 4180; Philips Radios - (ID = 133940) mod-past25 Philector 4180; Philips Radios - (ID = 133941) mod-past25
Philector 4180; Philips Radios - (ID = 158296) mod-past25 Philector 4180; Philips Radios - (ID = 158297) mod-past25
Philector 4180; Philips Radios - (ID = 158298) mod-past25 Philector 4180; Philips Radios - (ID = 193187) mod-past25
Use red slider bar for more.

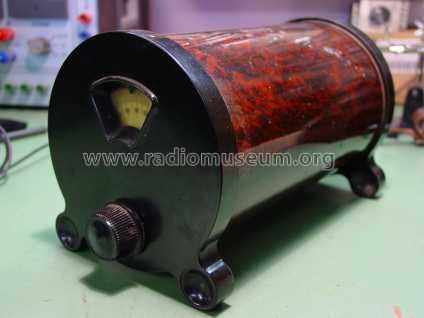

Philector 4180; Philips Radios - (ID = 27237) mod-past25
Philips Radios -: Philector 4180 [mod-past25] ID = 27237 424x318
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philector 4180, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1931–1933 Category: Radio module post 1925 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Tuned circuits 1 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Philector 4180 - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 135 x 135 x 235 mm / 5.3 x 5.3 x 9.3 inch
Notes Selektions- und Sperrkreis, 200 - 1000 m
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 35.00 RM
Collectors' prices
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Mentioned in Katalog Radio-Zentrale Prohaska 1930/31 (dick)

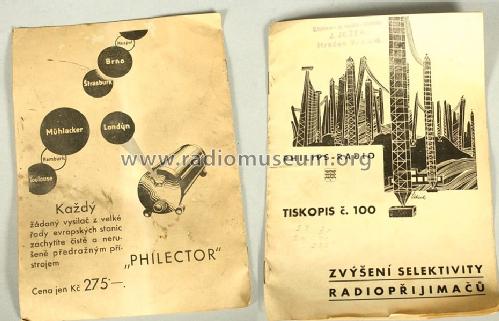

Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"


All listed radios etc. from Philips Radios - Deutschland
Here you find 2460 models, 2178 with images and 1470 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Philips Radios -: Philector 4180
Threads: 1 | Posts: 1
Hits: 1661     Replies: 0
philips: 4180; Philector was macht der ?
Hans M. Knoll
20.Nov.04
  1 Erläuterungen zur Funktion und Wirkungsweise dieser Zusatzteile
finden Sie etwas  unter:

http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=29256


sowie den Hauptartikel hier:

http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=6494

Der Autor: Hans M. Knoll
