Philetta B2D33A grau

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1963–1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245488

• • Brand: Deutsche Philips-Ges.

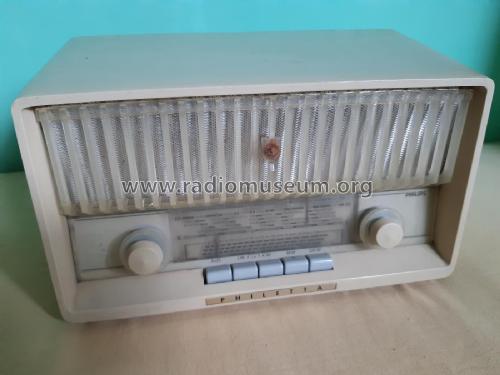

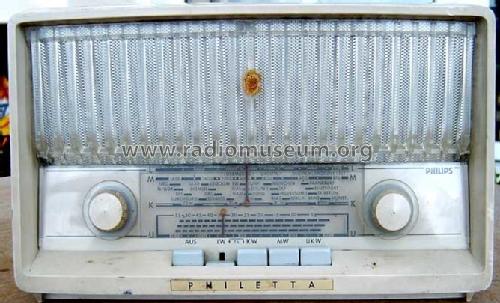

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86

• Number of Transistors

• Semiconductors
• AA119 AA119 B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philetta B2D33A [grau] - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 315 x 175 x 180 mm / 12.4 x 6.9 x 7.1 inch

• Notes

• Siehe auch Philetta B2D33A elfenbein und B2D33A braun.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Price in first year of sale
• 300.00 DM

• Mentioned in
• Handbuch VDRG 1963/1964

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Handbuch VDRG 1964/1965

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
