• Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7053
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Philetta B2D93U - Philips Radios - Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 285 x 185 x 165 mm / 11.2 x 7.3 x 6.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Price in first year of sale
  • 182.00 DM
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Philetta is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips Radios -: Philetta B2D93U

Threads: 1 | Posts: 2

Hallo allerseits,

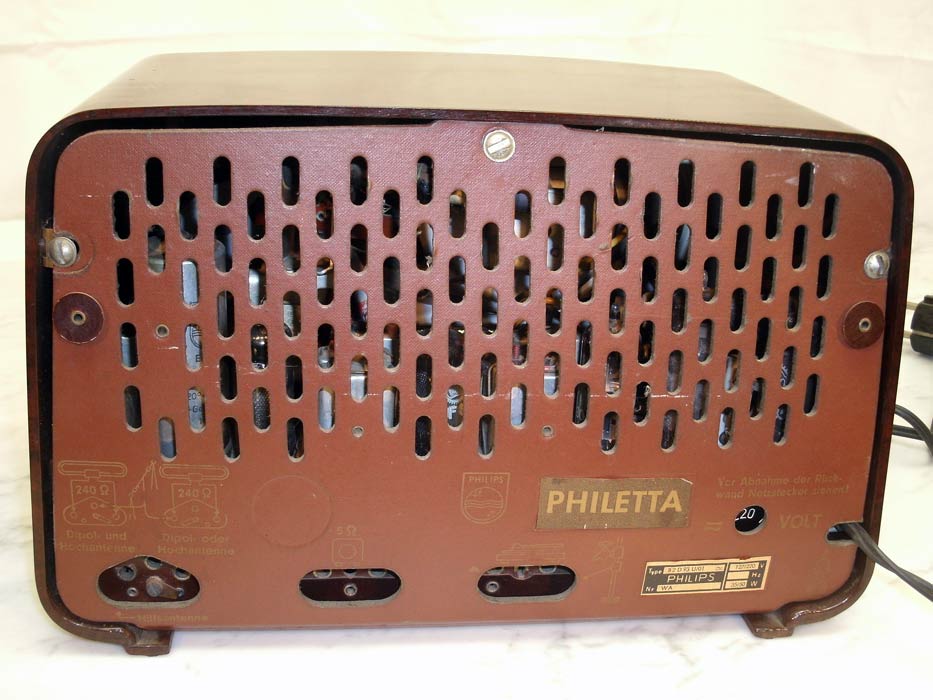

ich habe ca 30 Philettas und soeben festgestellt, dass sich meine B2D93U-01 rückseitig von der "Normalversion" unterscheidet. Heiko zur Mühlen scheint Bilder seiner 01-Version zue "Normalversion hochgeladen zu haben.

Frage: Soll die Philetta B2D93U/01 als neues Modell angelegt werden?

MfG Jörg Holtzapfel

Attachments

Jörg Holtzapfel, 26.Aug.12

Weitere Posts (2) zu diesem Thema.
