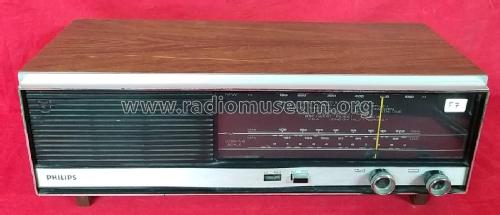

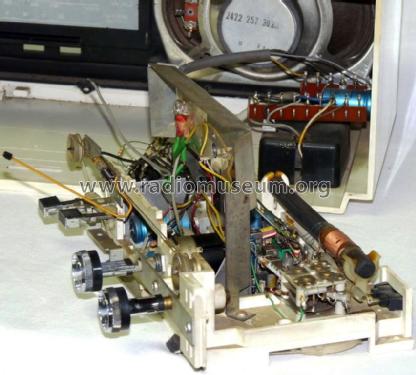

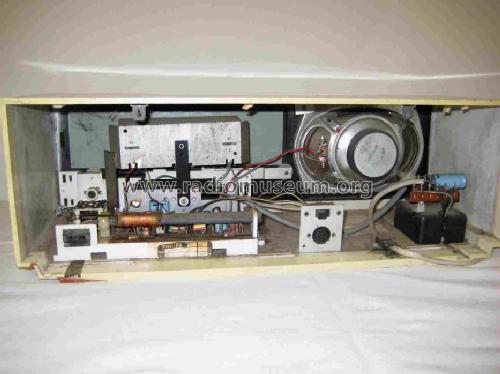

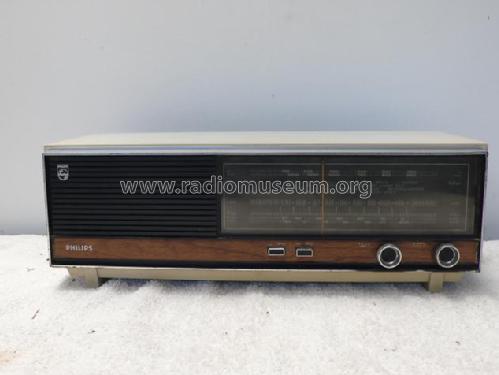

Philetta Special 192 22RB192 /00F /00S /00Z /22F /22S /22Z /62Z

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27927

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BF195 BF195 BF194 BF195 BC148 BC158 AC187 AC188 AA119 BA102 BZY88 OF160

• Main principle
• Superheterodyne (common); ZF/IF 452 or 460/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 242 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philetta Special 192 22RB192 /00F /00S /00Z /22F /22S /22Z /62Z - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 130 x 170 mm / 16.1 x 5.1 x 6.7 inch

• Notes

• 2 Wellenbereiche MW 520 - 1605 kHz und FM 87.5 - 104 MHz.

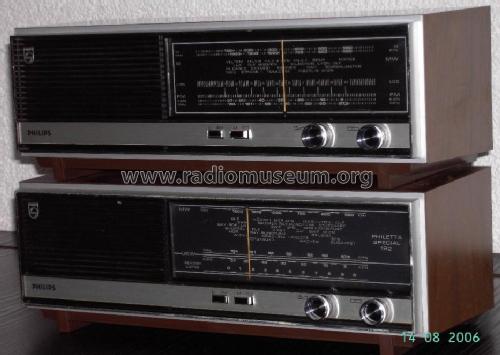

  Ausführungen: /..S = weiß, /..Z = Holzdesign. /..F = derzeit unbekannt. Modell /62Z hat ebenfalls eine abweichende Gehäuseartikelnumer.

  ZF für Modelle /00 = 452 kHz, Modelle /16 und /22 = 460 kHz.

  Parallelgerät zum Horny SA4358. Siehe auch Philetta Special 192 22RB192 /72Z in anderer Gehäuseausführung.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 1,350.00 ATS

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
