Präludio 57 B4A63A
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73274
Sammlung Albert Weiss
Sammlung Albert Weiss
Sammlung Albert Weiss

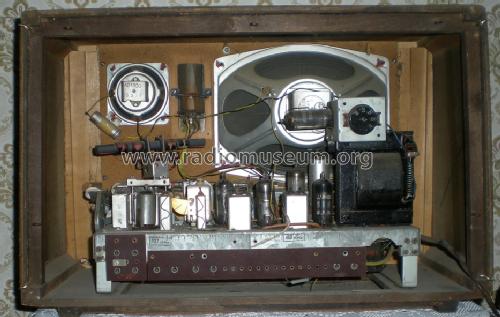

Chassis unten, Detailansicht der Verdrahtung
Ansicht Lautstärke- und Tonregler
Bild aus eigener Sammlung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Präludio 57 B4A63A - Philips - Österreich
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 505 x 330 x 240 mm / 19.9 x 13 x 9.4 inch
- Notes
-
Parallelgerät zum Hornyphon Lord 57 W466A.
- Price in first year of sale
- 1,975.00 ATS
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 1069 models, 1004 with images and 851 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips - Österreich
Collections
The model Präludio 57 is part of the collections of the following members.
