• Year
  • 1973 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 98976

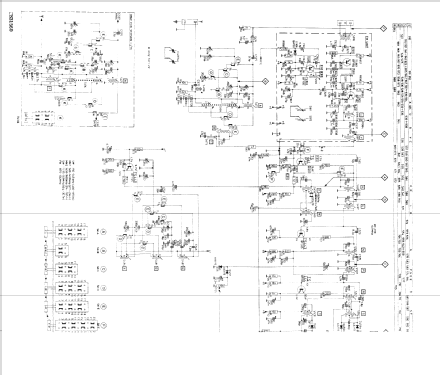

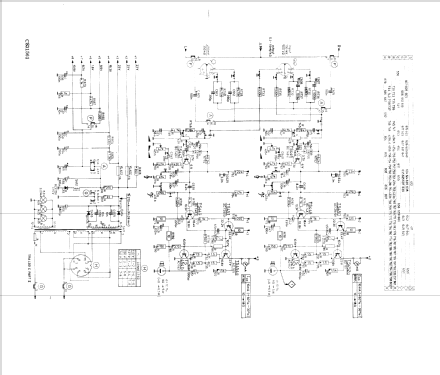

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 26
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 38 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org

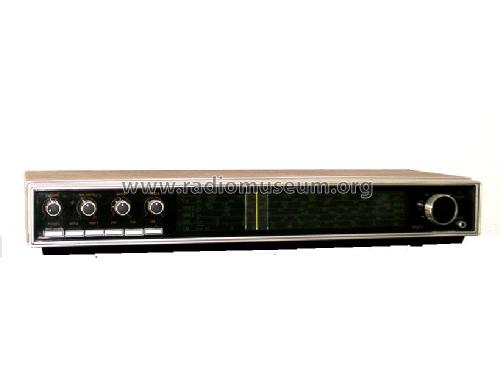

  • Model: RH701 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 510 x 85 x 210 mm / 20.1 x 3.3 x 8.3 inch
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Mario Coelho. See "Data change" for further contributors.
