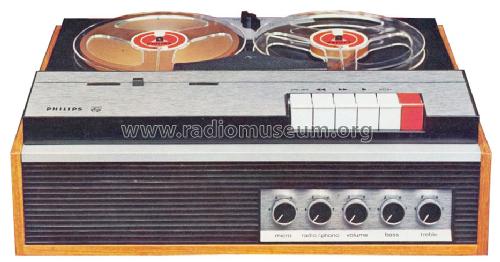

RK65S EL3576

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967/1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27237

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 EL95 EL95 EM87

• Number of Transistors
• 6

• Semiconductors
• AC125 AC126 AC126 AC172 AC172 AC172

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RK65S EL3576 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 165 x 335 mm / 16.9 x 6.5 x 13.2 inch

• Notes

• Vierspur-Mono; Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s; Spulen-Ø 18 cm; Frequenzgang: 60-4500 Hz bei 2,4 cm/s, 60-10000 Hz bei 4,75 cm/s, 60-15000 Hz bei 9,5cm/s, 40-18000 Hz bei 19 cm/s;
  Stereowiedergabe mit Zusatzverstärker EL3787 möglich.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968

• Other Models

• Here you find 2540 models, 2251 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
