Super inductance 634A
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13214

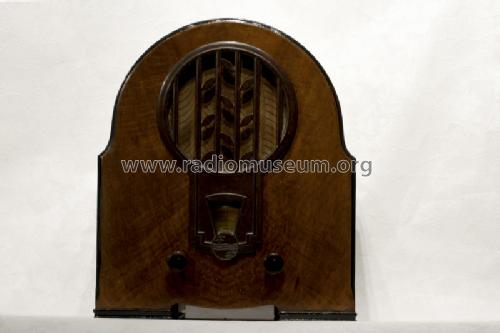

Philips 634 outdoors front view.
Heinz Knocks
Heinz Knocks
Philips Type 634A
Philips Type 634A

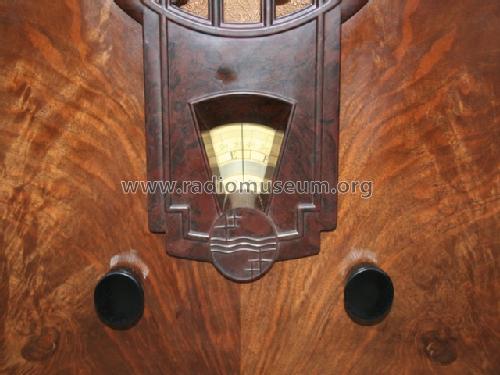

Philips Type 634A (Skala)
Philips Type 634A (Rückansicht)
Philips Type 634A (Innenansicht)
Philips Type 634A (Innanansicht)
Philips Print Advertise

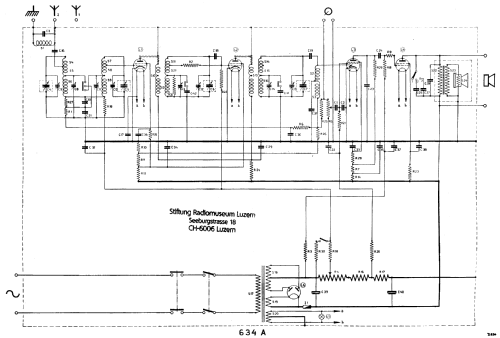

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Power out
- 2.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super inductance 634A - Philips - Schweiz
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 430 x 490 x 320 mm / 16.9 x 19.3 x 12.6 inch
- Notes
- Verkleinert als Replik siehe ID = 70882.
- Net weight (2.2 lb = 1 kg)
- 16.4 kg / 36 lb 2 oz (36.123 lb)
- Price in first year of sale
- 2,850.00 FF
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die «Thali Schemasammlung» führt das Modell.
- Mentioned in
- Les Radio PHILIPS de collection
