• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1957/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166459

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

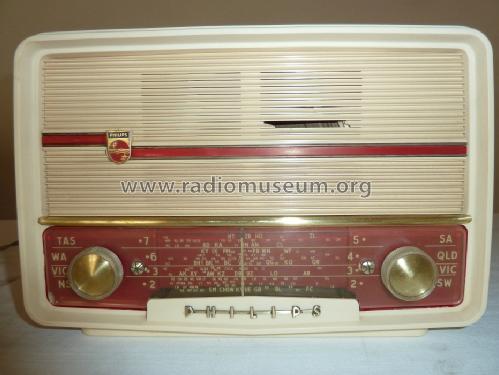

• Model: Quintet 167 - Philips Australia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 185 x 145 mm / 11 x 7.3 x 5.7 inch

• Notes

• Urea formaldehyde cabinet, thermoplastic grill.

  This model was available in four cabinet colours: Coral, Grey, Ivory and Red.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 25.00 AUS GNS

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• -- Schematic (JR Publications Valve Radio Service Handbook Page P23)

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
