• Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 205381

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • TRF with diode detector
  • Wave bands
  • Long Wave and/or Very Low Frequency (VLF).
  • Details
  • Wired Wireless Receiver (RF!)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

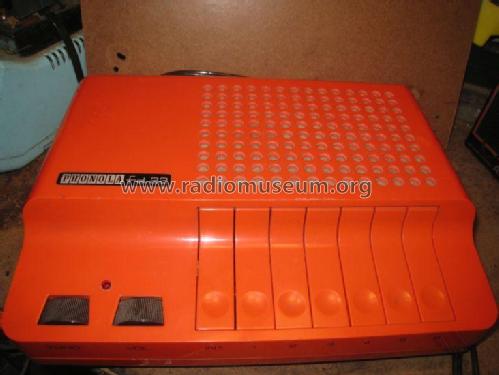

  • Model: FD22 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 265 x 80 x 200 mm / 10.4 x 3.1 x 7.9 inch
  • Notes
  • Filodiffusore a 6 canali trasmessi in AM;
    1= 178 kHz, 2= 211 kHz,3= 244 kHz, 4= 277 kHz, 5= 310 kHz, 6= 343 kHz,
    trasmessi con linea telefonica.

    Vedere anche il modello Phonola FD22, con bande d'onda FM.

  • Author
  • Model page created by Pasquale Baiocato. See "Data change" for further contributors.
