• Year
  • 1968 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 165282

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 33
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900/5500 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 125;160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

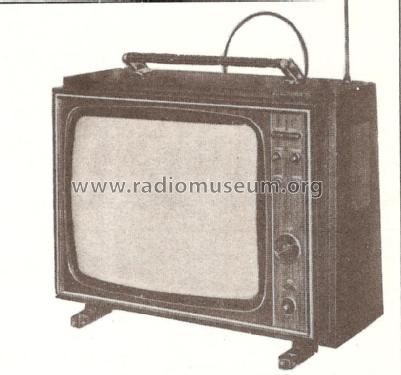

  • Model: Kariba TT1788 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 516 x 445 x 330 mm / 20.3 x 17.5 x 13 inch
  • Notes
  • Televisore completamente a transistori, transportabile
    Cinescopio special panoramic da 17 pollici a schermo allargato rettangolare tipo autoprotetto deflessione 114°
    Sintonizzatore UHF, gamma 470 ÷ 860 MHz, selettore VHF, gamma 52 ÷ 230 MHz
    Antenna VHF a stilo, antenna UHF tipo loop-antenna incorporate, orientabili
  • Net weight (2.2 lb = 1 kg)
  • 18 kg / 39 lb 10.4 oz (39.648 lb)
  • Literature/Schematics (1)
  • -- Schematic (.)
