• Year
  • 1959 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 159224

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.4 W (unknown quality)
  • from Radiomuseum.org
  • Model: T306A - Phonola SA, FIMI; Saronno VA
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 275 x 295 mm / 15.7 x 10.8 x 11.6 inch
  • Notes

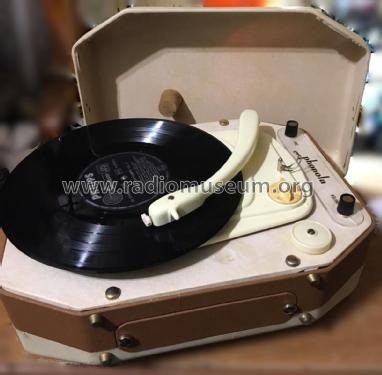

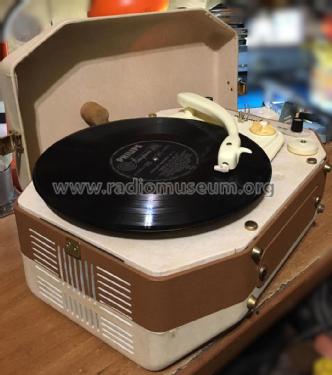

  • Fonovaligia. Complesso fonografico a 4 velocità. Comandi: volume-tono.
    4 speed portable record player.
  • Price in first year of sale
  • 55,000.00 ITL
  • Mentioned in
  • -- Original prospect or advert (Radiofonografi Phonola - Serie 1959)
  • Literature/Schematics (1)
  • -- Schematic
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
