Pilotuner T-601; Pilot Electric Mfg. (ID = 55433) Radio
Pilot Electric Mfg.: Pilotuner T-601 [Radio] ID = 55433 854x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pilotuner T-601, Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY):

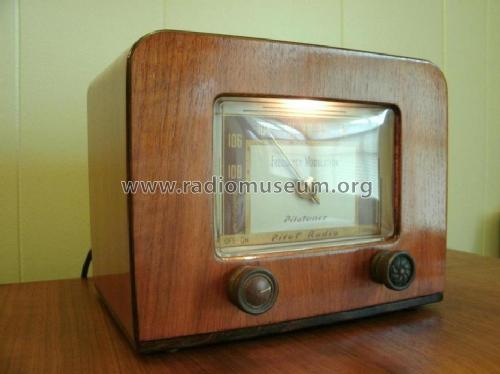

FM tuner only; no amplifier. Cabinet refinished.
Country:  United States of America (USA)
Manufacturer / Brand:  Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
alternative name
Pilot Radio & Television || Pilot Radio and Tube || Pilot Radio Corporation
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

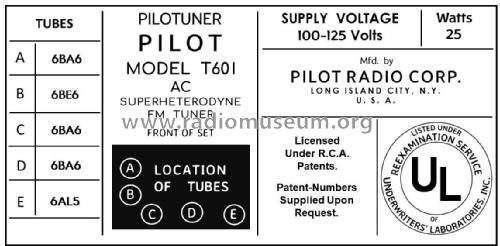

Valves / Tubes 5: 6BA6 6BE6 6BA6 6BA6 6AL5
Main principle Superhet with RF-stage; ZF/IF 10700 kHz
Tuned circuits 9 FM circuit(s)
Wave bands FM Broadcast Band Only
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Model: Pilotuner T-601 - Pilot Electric Mfg. Co. Radio
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 8.75 x 7 x 6 inch / 222 x 178 x 152 mm
Notes Pilot Pilotuner T601, one of the first FM receivers after approval of the new 3m-band through the FCC.
Selenium Rectifier.
Frequency range 88...110 MHz.
See also model T601A with symmetrical ratio detector.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 29.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Guide to Old Radios
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition (Beitman Radio Diagrams 1948)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-47, Set 28, Folder 4718-27)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (July 1947 page 128. September 1947 page 69.)

All listed radios etc. from Pilot Electric Mfg. Co. (Radio Corp.); Brooklyn (NY)
Here you find 493 models, 213 with images and 368 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.


Forum contributions about this model
Pilot Electric Mfg.: Pilotuner T-601
Threads: 3 | Posts: 5
Hits: 541     Replies: 2
pilot: Too many tubes
Victor Ford

The Pilotuner T601 schemetic shows 5 tubes/valves. Mine has a 6th tube under the chassis. A 6C4. Not sure where to go from here. I replaced all caps, and all 6 tubes are good. Just trying to figure out why the 6C4?

Bernhard Nagel

Hello Victor,

please show some pictures of your Pilotuner T601 to help determine if this is an original factory variant or a later modification.

Thank you.

Robert Weaver

I've never seen any documentation to indicate that there was ever a version with an added 6C4. I think that this was likely a user modification, not done at the factory. It's not normal for a factory built product to have a tube mounted under the chassis. As Bernhard suggested, a picture would be very helpful.

Off the top of my head I can think of a couple of reasons for adding this tube. The most likely is to get a bit more audio output. The other possibility (less likely) is that it is part of an added AFC circuit.

Hits: 1625     Replies: 0
pilot: T-601; Pilotuner
Dietmar Rudolph

In the book "Rider, J.F.; Ulsan, S.D.: FM Transmission and Reception, 2nd ed., 2nd printing, Rider, 1951" the Pilotuner and the Edwards Fidelotuner are described.

The Pilotuner

This f‑m tuner5 also employs five tubes but uses all miniature sizes with a 6AL5 duo‑diode employed as a ratio detector. Three other tubes are 6BA6 pentodes used as an r‑f amplifier and for the first and second i‑f amplifiers. A 6BE6 pentagrid tube is used as a converter. The schematic diagram for this tuner appears in Fig. 7‑43, and a top chassis view appears in Fig. 7‑44.

From the schematic diagram, a few interesting things are noted. First of all, the coils marked as P8 and P10 are shown to be variable without any internal core adjustment similar to the i‑f transformers.

Looking at the ratio detector transformer, we note that the primary does not contain any fixed capacitance for tuning purposes. The core going through the primary coil is also extended to the coil directly underneath this primary, indicating that both coils are wound on the same coil form. These features plus some other interesting properties of the tuner will now be discussed in detail.

In aligning the oscillator and r‑f stages on the low end of the f‑m band, the tuner provides for inductive padding. The r‑f section's inductive padder is designated P10 in Fig. 7‑43 and also appears in the picture of Fig. 7‑44. The interesting thing about this coil is that the variation of its inductance is simply made by changing the spacing between the coil windings. From Fig. 7‑44 the r‑f padder coil P10 is seen to consist of only two turns, and the space between these two windings is varied by means of a screw. The screw is kept in place by means of a piece of Bakelite tubing which is threaded on the inside. Upon clockwise rotation of the screw, the coil spaeing is decreased, thereby increasing the inductance, and upon counterclockwise rotation the spaeing is increased, thereby decreasing the inductance.

The oseillator padder P8 is located on the underside of the chassis and also consists of about two turns of wire. A drawing of this oscillator padder construction is shown in Fig, 7‑45.

The variation of the inductance of this padder is somewhat different from that for the r‑f padder P10. The spacing between the coil turns of this padder P8 are kept stationary, but the effective magnetic field about the coil is varied. Between the spacing of the winding is a thin strip of Bakelite, which is mounted above the chassis by two brass spacers. This Bakelite strip runs through the spacing of the coil and contains a threaded hole where the center of the coil winding appears. Into this hole is inserted a serew which has a round metal plate attached to the underside of the screw head. This metal plate is about 7/8 of an inch in diameter and 1/16 of an inch thick. Its diameter exceeds the diameter formed by the coil winding.
Inductance of this oscillator padder coil is varied by turning the screw in or out. This inductance variation is explained as follows: The metal plate acts as a short‑circuited secondary winding to the oscillator padder coil, which effectively acts as the primary winding. The short‑circuited secondary reflects a reactance into the primary which is capacitive. This reflected capacitance is effectively in series with the primary inductance, and therefore reduces the effective value of the inductance. With the movement of the screw and, hence the metal plate, the coupling between the plate and coil changes. As a result the mutual reactance which exists between the plate and coils also varies, which in turn varies the reflected capacitance into the coil circuit. Turning the screw so that the plate moves toward the coil increases the coupling and also increases the reflected capacitance into the primary. This increased reflected capacitance decreases the effective inductance of the oscillator tank circuit, thereby increasing its frequency. Adjusting the screw so that the plate moves away from the coil increases the effective inductance and, hence, decreases the frequency of operation of the circuit.

The primary of the ratio detector transformer has no fixed capacitance across its coil, but it still forms a tuned circuit with the output capacitance of the last i‑f tube, stray wiring capacitance, and the inherent capacitance between the coil windings. The amount of this capacitance is high enough at the 10.7‑mc i.f. to form a tuned circuit with the primary coil. Besides this feature, the physical construction of the ratio detector transformer is quite interesting. A picture of the construction of the transformer is shown in Fig. 7‑46 (A), and a detailed schematic drawing is shown in Fig. 7‑46 (B). This schematic drawing is somewhat different in appearance from the ratio detector circuit which is shown in Fig. 7‑43, but they are effectively the same in circuit operation.The tertiary coupling coil L is wound over one end of the primary coil L, which appears on the top coil form of Fig. 7‑46 (A). Because of this close coupling between L and L1, the voltage appearing across L1 is effectively in series with L but 1800 out of phase. The secondary is wound on the lower coil form. Both coil forms are mounted on a flat brass strip, and each coil form contains a variable core to change the effective inductance of the coils. The cores are adjustable by means of two screws which appear on one side of the brass strip as seen in Fig. 7‑46 (A). These screws are about 15/8 of an inch apart.

Particularly noteworthy in the construction of this transformer is the bifilar winding of the secondary coil. This bifilar winding is obtained by using a very closely spaced twin lead, which is insulated with a transparent plastic and is wound around the bottom coil form with both ends open. The plastic insulator at the ends is split, exposing two bare wires at each end. These two wires of the twin lead are shown in the drawing of Fig. 7‑46 (B) as coil A to E and coil B to D. A trace of the coil circuit across capacitor C starting at point B, would travel from point B to D, then from F to A to E. Therefore, each part of the bifilar winding L2 contributes to the inductance for the secondary tuned circuit.

Coil L must be tapped to the center of the secondary inductance to maintain the balance for the detector circuit. This tap is obtained by connecting one end of L to point F, the junction of A and D, as seen in Fig. 7‑46 (B). The complete inductance of the secondary is made up of the coil winding BDFAE, and since the length of BD is approximately equal to length AE, it is readily seen that by connecting to point F, the junction of AD we are effectively center‑tapping the coil. It is advisable that, if any trouble is suspected in the ratio detector circuit that lies within the transformer shield, the serviceman not attempt to take the circuit apart. It is suggested that the manufacturer or one of his representatives be contacted.

5Manufactured by the Pilot Radio Corp. of N.Y.C. under the brand name of "Pilotuner" and listed as model T‑601.

Hits: 2081     Replies: 0
pilot: T601; Pilotuner
Dietmar Rudolph
  1 Beschreibung aus Raschkowitsch "Phasenwinkelmodulation" (21kB)
