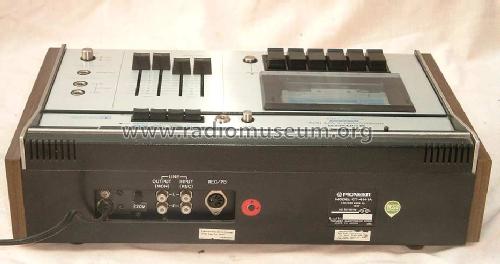

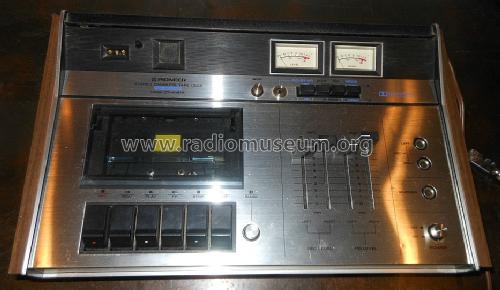

Stereo Cassette Tape Deck CT-4141A

Pioneer Corporation; Tokyo

  • Year
  • 1972/1973
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 81827

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck CT-4141A - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 396 x 96 x 242 mm / 15.6 x 3.8 x 9.5 inch
  • Notes
  • Stereo Cassette Tape Deck with Dolby System B; Frequency Range with regular tape: 30-13000Hz - with Chromium dioxide tape: 30-16000Hz.
    Vollautomatische Endabschaltung, Anzeigelampe für Bandlauf, getrennt zu betätigende Pegelregler für Aufnahme und Wiedergabe, elektronisch gesteuerter Gleichstrommotor, Stereo-Mono-Umschalter.
  • Net weight (2.2 lb = 1 kg)
  • 4.7 kg / 10 lb 5.6 oz (10.352 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
