• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1979

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 89811

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220,240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

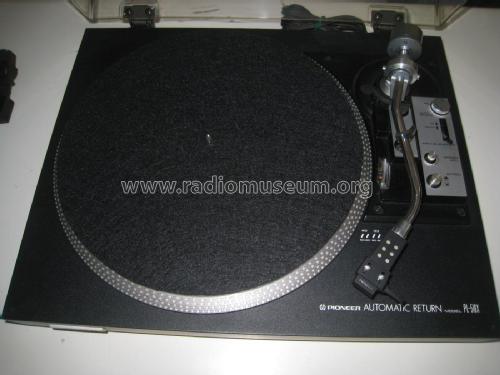

• Model: Stereo Turntable PL-516X - Pioneer Corporation; Tokyo

• Shape
• Rack

• Dimensions (WHD)
• 365 x 140 x 440 mm / 14.4 x 5.5 x 17.3 inch

• Notes
• Auto return mechanism, Anti-skating force control, 40-mm-thick solid particle board cabinet, Cueing device, Strobe light, Fine speed adjuster, Insulator feet, Plug-in type headshell. Cartridge: Pioneer PC-110/II, Stylus: PN-110/II. Motor: FG Servo DC motor, Drive System: Belt-drive.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
