RG Dynamic Processor RG-1 All

RG Dynamic Processor RG-1; Pioneer Corporation; (ID = 549347) Ampl/Mixer
Use red slider bar for more.
RG Dynamic Processor RG-1; Pioneer Corporation; (ID = 549347) Ampl/Mixer

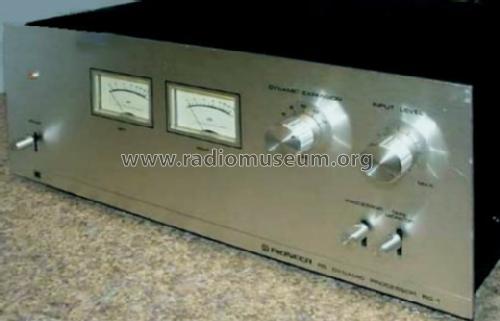

Pioneer Corporation;: RG Dynamic Processor RG-1 [Ampl/Mixer] ID = 549347 520x334
Select picture or schematic to display from thumbnails on the right and click for download.
For model RG Dynamic Processor RG-1 All, Pioneer Corporation; Tokyo:
Thanks for Mr.Kovács József.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1975 ?? Type: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RG Dynamic Processor RG-1 [All] - Pioneer Corporation; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13.75 x 5.5 x 12.5 inch / 349 x 140 x 318 mm
Notes Pioneer RG RG Dynamic Processor RG-1;
Two VU meters, dynamic expansion control 6 - 14 dB, RCA terminals, 15 W power consumption, different power supply versions known like universal voltages as well as 120 VAC only.
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
