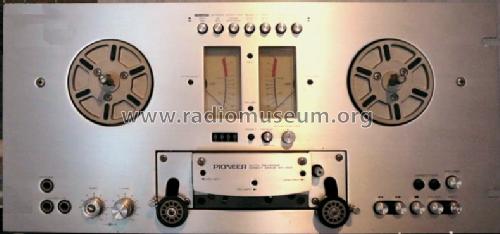

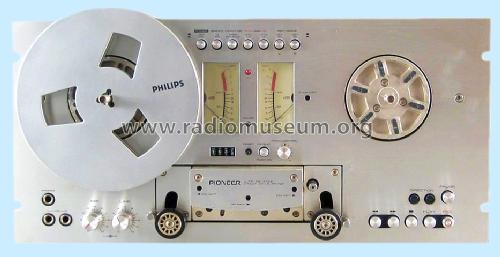

Auto Reverse Direct Drive Open Reel Deck RT-707

• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1978/1979

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 89759

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 67

• Semiconductors
• TA7129 2SK30 2SC945 2SC1344 2SA672 2SC828 2SC1213 2SD526 2SA564 2SD525 2SC1166 1N34A

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Auto Reverse Direct Drive Open Reel Deck RT-707 - Pioneer Corporation; Tokyo

• Shape
• Rack

• Dimensions (WHD)
• 480 x 230 x 366 mm / 18.9 x 9.1 x 14.4 inch

• Notes

• Einbau in 19"-Rack oder stapelbar, zusammen mit anderen Geräten (Tuner, Amplifier, Cassettendeck, ff.) der Serie Project M 1000 / M 9000. 18-cm-Spulen, Geschwindigkeiten: 9,5 / 19 cm/sek; 20...24000 Hz, 3 Motoren, 4 Köpfe, 4 Spuren, Stereo, Auto-Reverse.

  Neben dem unmittelbaren Nachfolgemodell (mit LED-Aussteuerungsketten) die einzigen stapelbaren Tonbandmaschinen für den Semi-Profi.

  Halbleiterliste: nur einmal pro Typ.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 2,398.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
