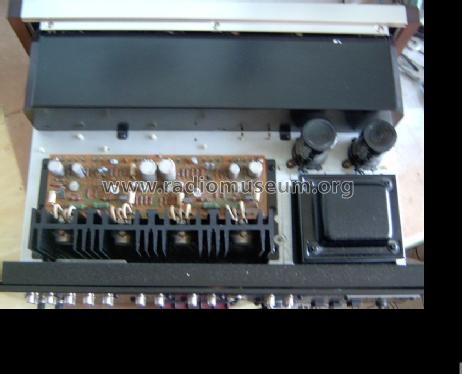

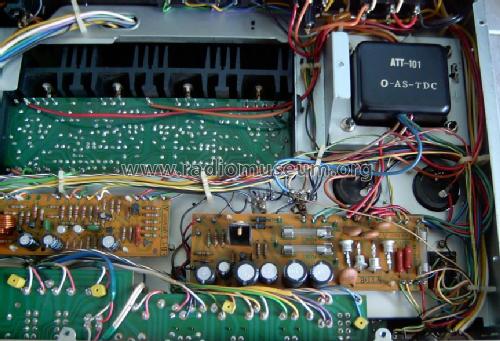

Stereo Amplifier SA-7100; Pioneer Corporation; (ID = 1615578) Ampl/Mixer Stereo Amplifier SA-7100; Pioneer Corporation; (ID = 1615579) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier SA-7100; Pioneer Corporation; (ID = 556844) Ampl/Mixer
Pioneer Corporation;: Stereo Amplifier SA-7100 [Ampl/Mixer] ID = 556844 540x261
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier SA-7100, Pioneer Corporation; Tokyo:
Original prospekt in 1974.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1974 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 33:
Reception principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60, 120 or 50/60Hz: 110; 120; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier SA-7100 - Pioneer Corporation; Tokyo
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 138 x 341 mm / 16.9 x 5.4 x 13.4 inch
Notes

Pioneer Stereo Integrated Amplifier Model SA-7100.
3-stage direct coupled equalizer section
FET equipped tone control amplifier section
Turnover frequency selectors for versatile tone control facilities
Automatic protection circuit
Power output:
20 Watts per channel into 8Ω (stereo)
30 Watts per channel into 4Ω (stereo)
Frequency response: 7Hz to 80kHz
Total harmonic distortion: 0.5%
Damping factor: 40
Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 90dB (line)
Tone Controls:
Bass: Turnover 200Hz +/-6,5dB at 100Hz; Turnover 400Hz +/-10dB at 100Hz
Treble: Turnover 2500Hz +/-10,5dB at 10500Hz; Turnover 5000Hz +/-7,5dB at 10000Hz
Loudness
Power Consumption 180 Watts

Semiconductors:
2x FET's
24x Diodes
33x Transistors

Note:
Pioneer Model SA-7100 comes in two versions:
KUW - 120VAC only (UL approved - U.S.A.)
FVW - 5-position selector - General Export Model

Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
