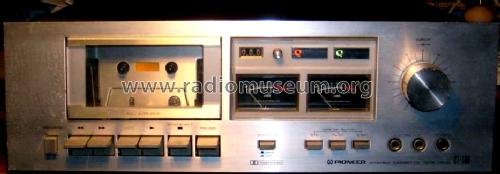

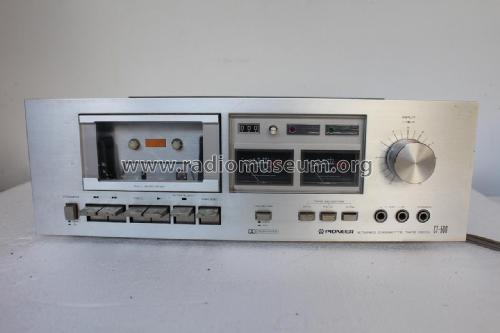

Stereo Cassette Deck CT 506
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1978/1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 145131
Original prospekt in 1978/79.
My collection!!
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Cassette Deck CT 506 - Pioneer Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 140 x 261 mm / 16.5 x 5.5 x 10.3 inch
- Notes
- WRMS < 0,05 %, 40-15 000 Hz +/- 3 dB ( with Ferricrom band).
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
