Stereo Receiver SX-626

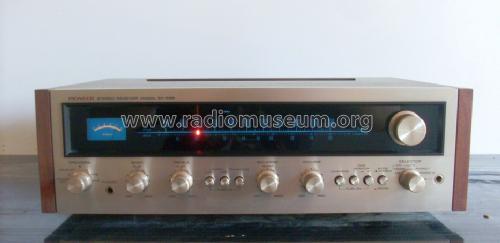

Stereo Receiver SX-626; Pioneer Corporation; (ID = 590627) Radio Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508488) Radio

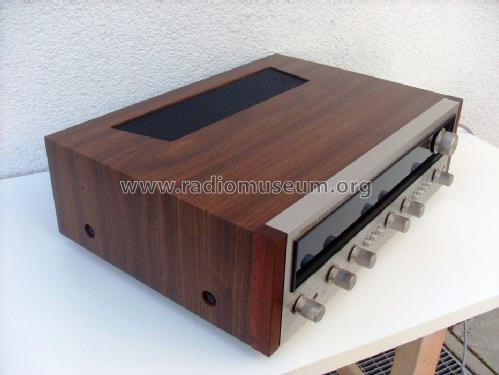

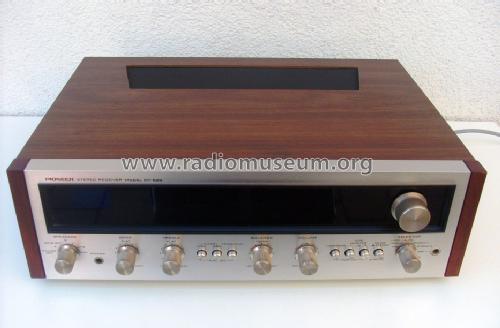

Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508492) Radio Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508494) Radio
Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508496) Radio Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508497) Radio

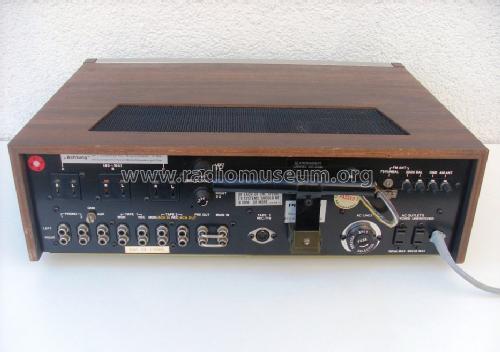

Stereo Receiver SX-626; Pioneer Corporation; (ID = 1508500) Radio
Use red slider bar for more.
Stereo Receiver SX-626; Pioneer Corporation; (ID = 590627) Radio
Pioneer Corporation;: Stereo Receiver SX-626 [Radio] ID = 590627 900x555
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver SX-626, Pioneer Corporation; Tokyo:
Prospekt

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1972 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 41:
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver SX-626 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 145 x 360 mm / 17.7 x 5.7 x 14.2 inch
Notes AM/FM-Stereo-Receiver mit 2 x 40 Watt Sinus an 4 Ohm.
41 Transistoren, 4 FET's, 22 Dioden und 4 IC's.
Net weight (2.2 lb = 1 kg) 9.9 kg / 21 lb 12.9 oz (21.806 lb)
Source of data -- Original-Prospect
Mentioned in Pioneer - mehr als nur HiFi 1972

Model page created by Franz Scharner. See "Data change" for further contributors.
